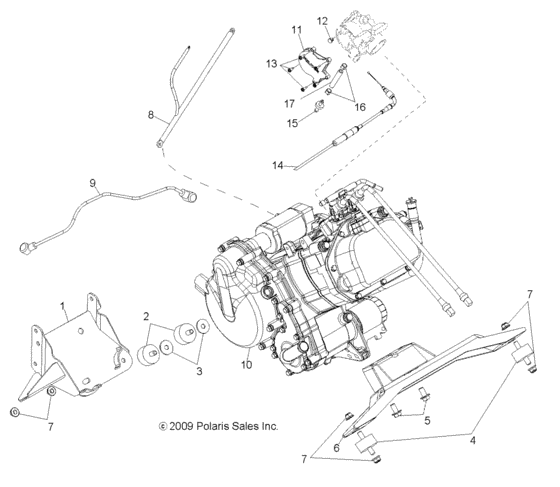

Engine, mounting (R10TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1017391-329 Weld-mount,engine,rear,blk |
1017391-329 |
US $92.16 |
||
|
2
|
2
3022076 Isolator-3/8-24m,3/8-16m,60dur |
3022076 |
US $34.46 |
||
|
3
|
3
7555823 Washer |
7555823 |
US $6.56 |
||
|
4
|
4
3022071
Isolator-3/8-24m/m,60duro
|
3022071 |
— | ||
| replacement | |||||
|
4
|
4
3023593 Isolator-3/8-24M/m,60Duro |
3023593 |
US $39.38 |
||
|
5
|
5
7518460 Bolt-m10x1,5x20,hxflg,w/patch |
7518460 |
US $1.77 |
||
|
6
|
6
1017424-329 Weld-engine mnt,800,blk |
1017424-329 |
US $83.86 |
||
|
7
|
7
7547263 Nut-3/8-24 nylok |
7547263 |
US $2.63 |
||
|
8
|
8
4012620 Cable, ground, split |
4012620 |
US $128 |
||
|
9
|
9
4012621 Cable-solenoid/starter |
4012621 |
US $52.66 |
||
|
10
|
10
2204314
Kit-short block 800efi
NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty con; |
2204314 |
— | ||
|
11
|
11
1202578 Asm-cover and o-ring,tb |
1202578 |
US $18.20 |
||
|
12
|
12
3130543 Guide,cable |
3130543 |
US $19.30 |
||
|
13
|
13
3131515 Screw,shoulder |
3131515 |
US $8.66 |
||
|
14
|
14
7081557 Cable-throttle,rngr 700 |
7081557 |
US $74.85 |
||
|
15
|
15
7052038 Valve, check |
7052038 |
US $9.15 |
||
|
16
|
16
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
17
|
17
8450113-04
Hose
|
8450113-04 |
— | ||
