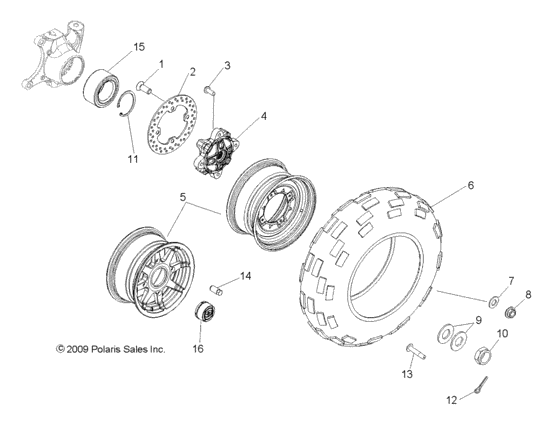

Wheels, front (R10TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518978 Scr-m10x1,5x20 8,8 txcs fl zod |
7518978 |
US $2.28 |
||
|
2
|
2
5251565
Disc-brake, front
|
5251565 |
— | ||
|
3
|
3
7517871 Stud-3/8-24x1,73,prs fit-2 |
7517871 |
US $2.28 |
||
|
4
|
4
5136254-067
Hub-wheel,front(mach),blk
Built 12/31/09 and Before; |
5136254-067 |
— | ||
|
4
|
4
5137127-067 Hub-wheel,front(mach),blkBuilt 1/01/10 and After; |
5137127-067 |
US $103.41 |
||
|
5
|
5
1520263-067 Weld-rim,front,10 ga,blkTH76AG;AH;AR;TY76AG; |
1520263-067 |
US $112.72 |
||
|
5
|
5
1520263-455 Weld-rim,front,10 ga,12x6,nbuAL; |
1520263-455 |
US $142.80 |
||
|
5
|
5
1520263-458 Weld-rim,front,10ga,12x6,m,blkAB; |
1520263-458 |
US $123.46 |
||
|
5
|
5
1521106-067 Rim-front,12x6, cast,26,2,blkAJ;AN;AO;AW;AY;AZ; |
1521106-067 |
US $147.72 |
||
|
6
|
6
5411397
Tire,f, 25x10-12__uu0
TH76AG;AH;AR;TY76AG;Built 4/04/10 and Before; |
5411397 |
— | ||
| replacement | |||||
|
6
|
6
5413961 Tire-25x10-12,nhs,489TH76AG;AH;AR;TY76AG;Built 4/04/10 and Before; |
5413961 |
US $263.69 |
||
|
6
|
6
5413761 Tire-fr,26x9r12,pxtAB;AJ;AL;AO;AN;AW;AY;AZ; |
5413761 |
US $243.22 |
||
|
6
|
6
5413961 Tire-25x10-12,nhs,489TH76AG;AH;AR;TY76AG;Built 4/05/10 and After; |
5413961 |
US $263.69 |
||
|
7
|
7
7556242 Washer-,385x,88x,075,fl-y thrAB;TH76AG;AH;AL;AR;TY76AG; |
7556242 |
US $3.94 |
||
|
8
|
8
7542459 Nut, flanged(10)AB;TH76AG;AH;AL;AR;TY76AG; |
7542459 |
US $65.60 |
||
|
9
|
9
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
10
|
10
7547406 Nut-castle,m18x1,5x13 |
7547406 |
US $5.25 |
||
|
11
|
11
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
12
|
12
7661402 Pin, cotter |
7661402 |
US $2.45 |
||
|
13
|
13
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
14
|
14
7547309 Nut-3/8-24-wheelAJ;AN;AO;AW;AY;AZ; |
7547309 |
US $59 |
||
|
15
|
15
3514699 Bearing-ball,sealed,44x72x33.1Built 3/22/10 and After; |
3514699 |
US $49.23 |
||
|
15
|
15
3514627 Bearing-ball,sealed,44x72x33,1Built 3/21/10 and Before; |
3514627 |
US $54.15 |
||
| replacement | |||||
|
15
|
15
3514699 Bearing-ball,sealed,44x72x33.1Built 3/21/10 and Before; |
3514699 |
US $49.23 |
||
|
16
|
16
1521128 Cap-rim,14"AJ;AN;AO;AW;AY;AZ; |
1521128 |
US $30.70 |
||
