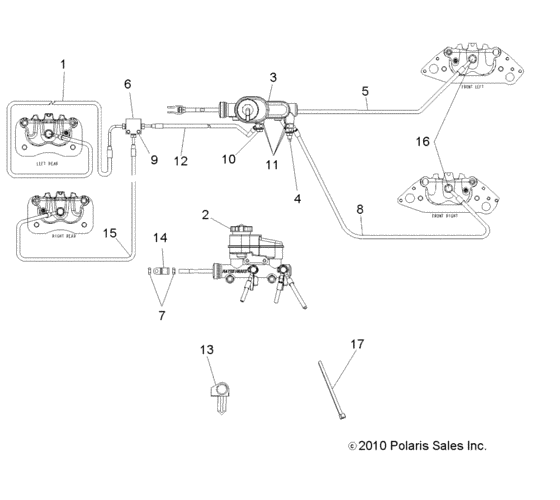

Brakes, lines and master cylinder (R11HR76AG/AR) Diagram Polaris RANGER 800 6X6 EFI
- Model code
- R11HR76AG/AR
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1911579 Line-brake,rear,lh,brd |
1911579 |
US $59.05 |
||
|
2
|
2
2203455 Kit-cap,m/c tandem,hb 3/4" |
2203455 |
US $42.35 |
||
|
3
|
3
2203454
Kit-asm,m/c tandem,hb 3/4"
Incl. 2,18,19; |
2203454 |
— | ||
|
4
|
4
4012981 Switch-press,brk,m10x1.25,dbl |
4012981 |
US $49.49 |
||
|
5
|
5
1911582 Line-brake,front,left,brd |
1911582 |
US $64.94 |
||
|
6
|
6
7052293 Fitting-tee,brake |
7052293 |
US $56.93 |
||
|
7
|
7
2203457 Kit-nuts,clevis,m/c tandemIncl. 2 Jam Nuts; |
2203457 |
US $23.64 |
||
|
8
|
8
1911583 Line-brake,front,rh,brd |
1911583 |
US $79.17 |
||
|
9
|
9
7512025 Screw |
7512025 |
US $3.26 |
||
|
10
|
10
1910958
Bolt-banjo, 10mm x 1,25-6g
|
1910958 |
— | ||
|
11
|
11
5413212 Seal-stat-o-3/8,70ep |
5413212 |
US $100.30 |
||
|
12
|
12
1911619 Line-brake,m/c,rear,brd |
1911619 |
US $99.82 |
||
|
13
|
13
7670102 Clip |
7670102 |
US $5.25 |
||
|
14
|
14
2203456 Kit-clevis,m/c tandem,hb 3/4" |
2203456 |
US $21.67 |
||
|
15
|
15
1911609 Line-brake,rear,rh,brd |
1911609 |
US $79.17 |
||
|
16
|
16
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
17
|
17
7080138 Cable tie (10) |
7080138 |
US $26.30 |
