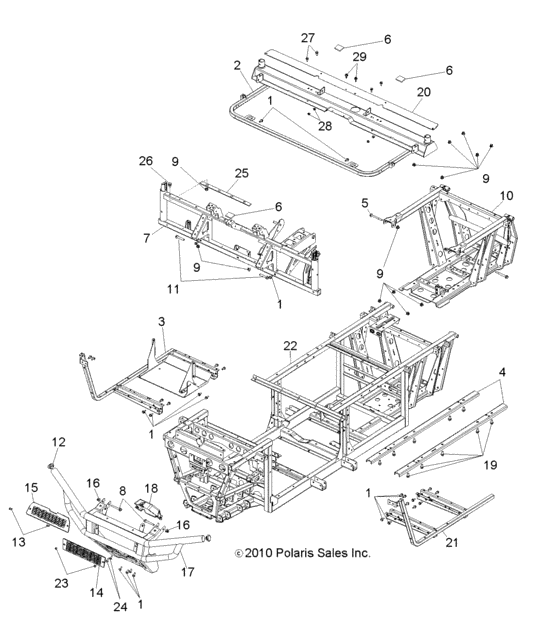

Chassis, frame and front bumper (R11HR76AG/AR) Diagram Polaris RANGER 800 6X6 EFI
- Model code
- R11HR76AG/AR
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518555 Polaris Hex Flange Bolt |
7518555 |
US $3.94 |
||
|
3
|
3
1016255-329 Weld-floor support,rh,blk |
1016255-329 |
US $162.51 |
||
|
4
|
4
5253795-067 Brkt-mnt,frame ext,blk |
5253795-067 |
US $79.17 |
||
|
5
|
5
7518560
Bolt-m10x1,25x95,hxflg-olive d
|
7518560 |
— | ||
|
6
|
6
5813421 Foam-hood support |
5813421 |
US $2.45 |
||
|
7
|
7
1017325-521 Weld-cab support,frt,ewb |
1017325-521 |
US $584.94 |
||
|
8
|
8
7518473
Bolt-m10x1,5x75,hx hd flg
|
7518473 |
— | ||
|
9
|
9
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
10
|
10
1017652-067
Weld-frame,rear,blk
|
1017652-067 |
— | ||
|
11
|
11
7518563 Bolt-m10x1,25x60,hxflg-olive d |
7518563 |
US $4.73 |
||
|
12
|
12
5434191 Cap-bumper (10) |
5434191 |
US $4.15 |
||
|
13
|
13
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
14
|
14
5438240-070 Screen-bumper,upper,blk |
5438240-070 |
US $21.26 |
||
|
15
|
15
5438241-070 Screen-fascia,blk |
5438241-070 |
US $23.24 |
||
|
16
|
16
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
17
|
17
1016310-521 Weld-bumper,ewb |
1016310-521 |
US $365.14 |
||
|
18
|
18
5438181-070 Brkt-bumper,guard,blk |
5438181-070 |
US $25.43 |
||
|
19
|
19
7518558
Bolt-m10x1,25x20,hxflg-olv d
|
7518558 |
— | ||
|
20
|
20
5254049-067 Shield, storage box, black |
5254049-067 |
US $58.12 |
||
|
21
|
21
1016254-329 Weld-floor support,lh,blk |
1016254-329 |
US $162.51 |
||
|
22
|
22
1017651-067
Weld-main frame,6x6,blk
|
1017651-067 |
— | ||
|
23
|
23
7518981 Scr-?-20x1/2 tr/tx/tap/r b |
7518981 |
US $1.49 |
||
|
24
|
24
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
25
|
25
5253973-329 Brkt-dash support,6x6,blk |
5253973-329 |
US $37.63 |
||
|
26
|
26
7519059 Scr-hxfl-m10x1,25x30 8,8 zod |
7519059 |
US $3.94 |
||
|
27
|
27
7517281 Screw |
7517281 |
US $5.22 |
||
|
28
|
28
7547317
Nut-m8x1,25,hxflg,nylon ins
|
7547317 |
— | ||
|
29
|
29
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
