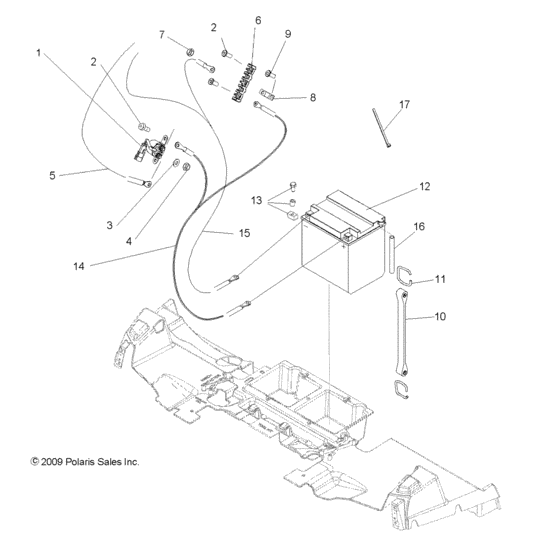

Electrical, battery (R11HR76AG/AR) Diagram Polaris RANGER 800 6X6 EFI
- Model code
- R11HR76AG/AR
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
| replacement | |||||
|
1
|
1
4014471 Solenoid-starter,c1100,w/wshr |
4014471 |
US $118.11 |
||
|
2
|
2
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
3
|
3
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
4
|
4
7546705 Nut, 6 mm,,s,s, |
7546705 |
US $2.45 |
||
|
5
|
5
4013173 Cable-solenoid/starter |
4013173 |
US $65.99 |
||
|
6
|
6
4011892 Block-terminal,3 post |
4011892 |
US $13.20 |
||
|
7
|
7
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
8
|
8
5248659 Strap-ground |
5248659 |
US $1.28 |
||
|
9
|
9
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
10
|
10
5411054 Strap,rubber,batt, |
5411054 |
US $15.26 |
||
|
11
|
11
7081123 Hook-strap,battery |
7081123 |
US $2.98 |
||
|
12
|
12
4010630 Battery-30 amp,top mount |
4010630 |
US $151.64 |
||
|
13
|
13
2202802
Kit-battery bolt
|
2202802 |
— | ||
|
14
|
14
4013172 Cable-positive,13"/16" |
4013172 |
US $60.17 |
||
|
15
|
15
4012620 Cable, ground, split |
4012620 |
US $128 |
||
|
16
|
16
5433681 Tube,batt,vent,400 mm |
5433681 |
US $2.28 |
||
|
17
|
17
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
