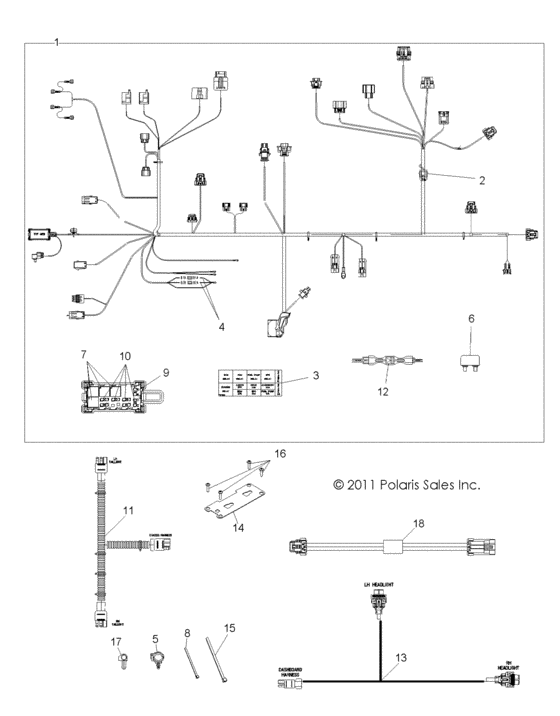

Electrical, harnesses (R11HR76AG/AR) Diagram Polaris RANGER 800 6X6 EFI
- Model code
- R11HR76AG/AR
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2203801 Kit-harness,tps,atv/rgr,twins |
2203801 |
US $103.41 |
||
|
1
|
1
2875542
Kit-harness,t-bap
|
2875542 |
— | ||
| replacement | |||||
|
1
|
1
2878494 Kit-harness,t-bap,t-map |
2878494 |
US $125.25 |
||
|
1
|
1
5438758 Cover-relay/fuse center |
5438758 |
US $12.79 |
||
|
1
|
1
2878077 Kit-harness,cps |
2878077 |
US $131.86 |
||
|
1
|
1
2875543 Kit-harness,engine temp |
2875543 |
US $97.51 |
||
|
1
|
1
2411647
Harness-chassis,6x6,800
Incl. 6,7,9,10, All Kits, Decal, Cover; |
2411647 |
— | ||
|
2
|
2
4010924
Module-resistor
|
4010924 |
— | ||
|
3
|
3
7177069
Decal
|
7177069 |
— | ||
|
4
|
4
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
5
|
5
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
6
|
6
2410881 Breaker-circuit,20 amp,sealed |
2410881 |
US $56.14 |
||
|
7
|
7
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
8
|
8
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
9
|
9
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
10
|
10
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
11
|
11
2411387
Harness,box,ranger
|
2411387 |
— | ||
|
12
|
12
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
13
|
13
2411388 Harness-rear diff,6x6 |
2411388 |
US $46.34 |
||
|
14
|
14
5253675 Plate-fuse,mnt,y |
5253675 |
US $3.26 |
||
|
15
|
15
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
16
|
16
7512026
Screw
|
7512026 |
— | ||
|
17
|
17
7670102 Clip |
7670102 |
US $5.25 |
||
