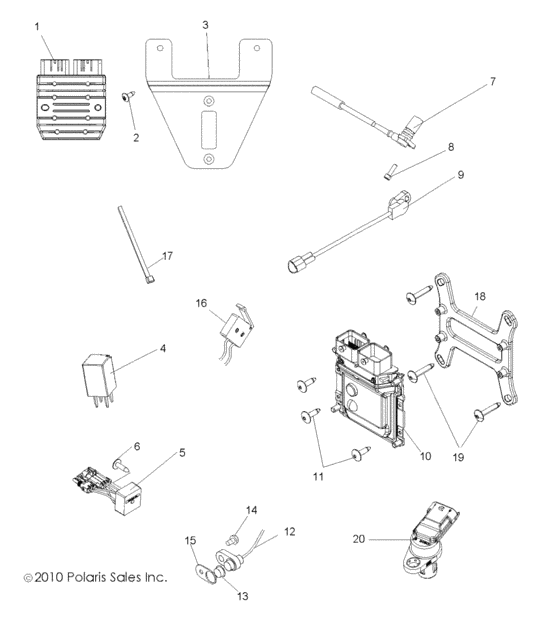

Electrical, regulator, relays, sensors and ecu (R11HR76AG/AR) Diagram Polaris RANGER 800 6X6 EFI
- Model code
- R11HR76AG/AR
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012941 Regulator-3ph,35a,series,105c |
4012941 |
US $244.51 |
||
|
2
|
2
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
3
|
3
5254622-329 Brkt-mount,regulator,blk |
5254622-329 |
US $8.17 |
||
|
4
|
4
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
5
|
5
4012829 Relay, solid state,9a,long ldDifferential Control; |
4012829 |
US $72.96 |
||
|
6
|
6
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
7
|
7
2410720 Sensor-crank position |
2410720 |
from US $91.60 |
||
|
8
|
8
7517384 Screw,sochd,m6x20 |
7517384 |
US $7.68 |
||
|
9
|
9
3131705 Sensor assy |
3131705 |
US $303.17 |
||
|
10
|
10
4012838 Service ecu, all my11 800 dom t |
4012838 |
US $567.23 |
||
|
11
|
11
7512026
Screw
|
7512026 |
— | ||
|
12
|
12
4011640 Sensor-hall effect,32" |
4011640 |
US $91.60 |
||
|
13
|
13
5132382 Cap-hall sensor |
5132382 |
US $16.24 |
||
|
14
|
14
7517653 Screw |
7517653 |
US $3.75 |
||
|
15
|
15
5253222 Spacer-speed sensor |
5253222 |
US $26.88 |
||
|
16
|
16
1911443
Switch-park brake,svc
|
1911443 |
— | ||
|
17
|
17
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
18
|
18
5438369-070 Mnt-mid,ecu,blk |
5438369-070 |
US $8.17 |
||
|
19
|
19
7519290 Scr-txph-#14x3/4 hi/lo clr |
7519290 |
US $1.49 |
||
|
20
|
20
2410835 Sensor-phase,cam,di |
2410835 |
US $179.60 |
