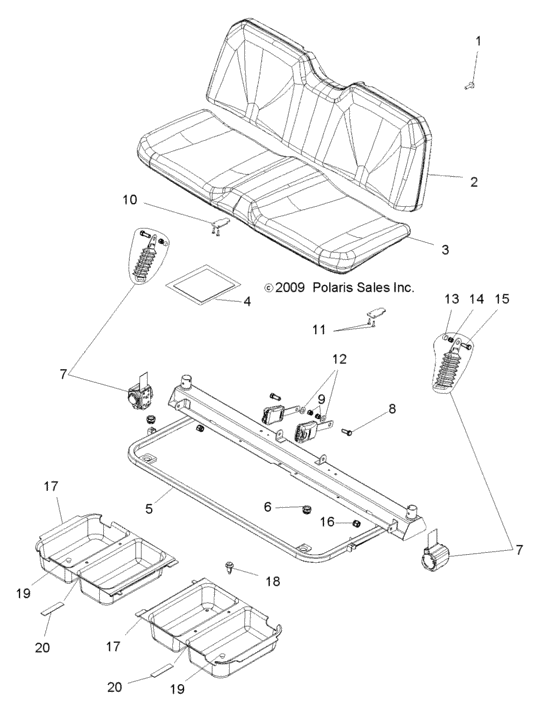

Body, seat (R10RC08GA/GH/FA/FH) Diagram Polaris RANGER EV/INTL 4X4
- Model code
- R10RC08GA/GH/FA/FH
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
2
|
2
2684294-070
Asm-seat,rngr,back,basic,blk
|
2684294-070 |
— | ||
|
3
|
3
2684292-070
Asm-seat,rngr,btm,basic,blk
|
2684292-070 |
— | ||
|
3
|
3
2204383 Kit-seat mntReplaces Seat Pin; |
2204383 |
US $61.23 |
||
|
4
|
4
5812295 Foil-seat |
5812295 |
US $8.17 |
||
|
5
|
5
1016544-458 Base, cab/seat, matte` black |
1016544-458 |
US $409.66 |
||
|
6
|
6
5412507 Grommet |
5412507 |
US $9.19 |
||
|
7
|
7
2633992 Asm-seat beltIncl. 13-16; |
2633992 |
US $395.57 |
||
|
8
|
8
7518820 Bolt-7/16-14x1,00-hx/cp-gr5,y |
7518820 |
US $1.49 |
||
|
9
|
9
7542525 Nut, nylok |
7542525 |
US $2.45 |
||
|
10
|
10
5437903 Tab-mount,seat |
5437903 |
US $2.07 |
||
|
11
|
11
7621479 Rivet(50) |
7621479 |
US $2.45 |
||
|
12
|
12
7556333 Washer-flat,,531x1,063x,094-y |
7556333 |
US $1.49 |
||
|
17
|
17
5438365
Tub, storage
|
5438365 |
— | ||
|
18
|
18
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
19
|
19
5412981 Plug-compartment |
5412981 |
US $3.94 |
||
|
20
|
20
5521235-15 Velcro, hook |
5521235-15 |
US $2.66 |
