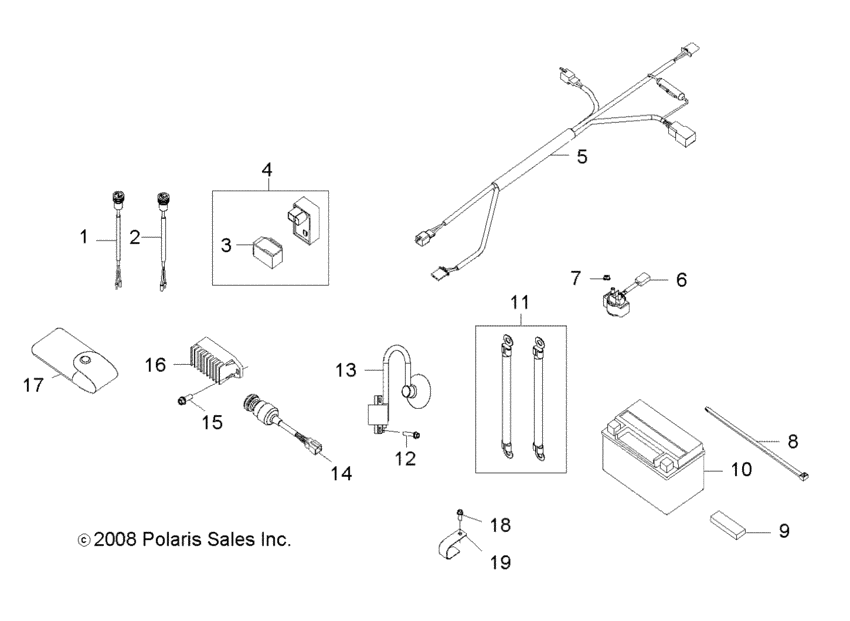

Electrical parts (A09VA17AA/AD) Diagram Polaris RANGER RZR 170
- Model code
- A09VA17AA/AD
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453486
Indicator-neutral
|
0453486 |
— | ||
|
2
|
2
0453485
Indicator-reverse
|
0453485 |
— | ||
|
3
|
3
0453473 Pad-rubber,cdi |
0453473 |
US $21.49 |
||
|
4
|
4
0454334 Asm-cdi unit |
0454334 |
US $297.78 |
||
|
5
|
5
0454333 Harness-wire,main,rzr-y |
0454333 |
US $366.33 |
||
|
6
|
6
0452761 Asm-starter relay |
0452761 |
US $72.56 |
||
|
7
|
7
0450880 Nut-flg w/serr(10) |
0450880 |
US $1.89 |
||
|
8
|
8
0450559 Strap(10) |
0450559 |
US $0.79 |
||
|
9
|
9
0452778 Pad-rubber,battery |
0452778 |
US $15.26 |
||
|
10
|
10
4011434 Battery-yuasa,ytx12,youth |
4011434 |
US $119.14 |
||
|
11
|
11
0454335
Asm-cable,battery
|
0454335 |
— | ||
|
12
|
12
0452763 Bolt-hex,sems |
0452763 |
US $0.79 |
||
|
13
|
13
0453474 Asm-ignition coil |
0453474 |
US $152.43 |
||
|
14
|
14
0454336 Asm-switch,main,rzr-yIncl. Decal; |
0454336 |
US $100.63 |
||
|
14
|
14
0454806 Decal-switch,main,ignition |
0454806 |
US $3.26 |
||
|
15
|
15
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
16
|
16
0454003 Rectifier/regulator-voltage 07 |
0454003 |
US $107.52 |
||
|
17
|
17
0454337 Asm-pouch,tool,rzr-y |
0454337 |
US $85.45 |
||
|
18
|
18
0450297 Bolt-pan(10) * |
0450297 |
US $3.75 |
||
|
19
|
19
0454394 Clip-retainer,cable |
0454394 |
US $9.85 |
