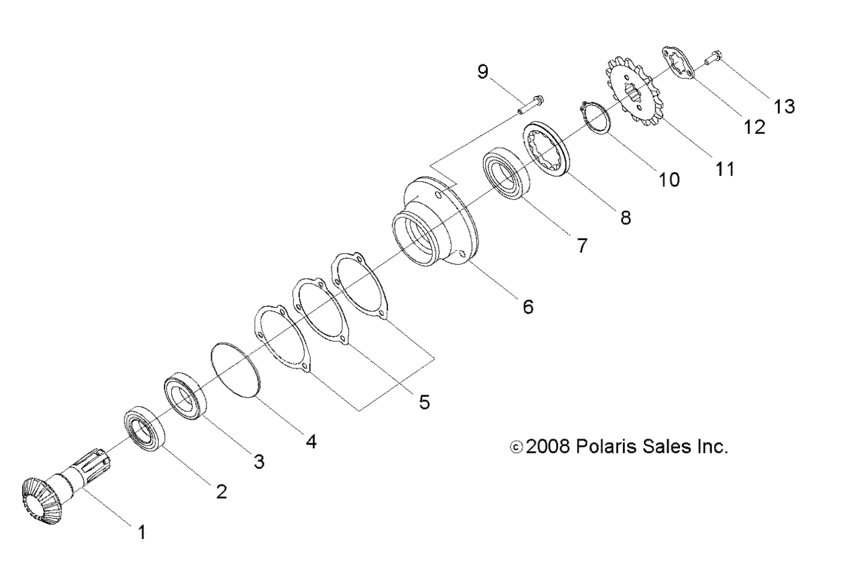

Drive train, gear shaft output (A10VA17AA/AD) Diagram Polaris RANGER RZR 170
- Model code
- A10VA17AA/AD
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454558 Gear-shaft,output |
0454558 |
US $218.16 |
||
|
2
|
2
0454559 Bearing-ball |
0454559 |
US $40.95 |
||
|
3
|
3
0452357 Seal-oil |
0452357 |
US $18.76 |
||
|
4
|
4
0452353 O-ring |
0452353 |
US $2.66 |
||
|
5
|
5
0454536 Set-shim |
0454536 |
US $18.57 |
||
|
6
|
6
0454537 Collar-gear shaft |
0454537 |
US $58.47 |
||
|
7
|
7
0454560 Bearing-ball |
0454560 |
US $58.28 |
||
|
8
|
8
0454561 Nut |
0454561 |
US $41.74 |
||
|
9
|
9
0454562 Bolt |
0454562 |
US $3.26 |
||
|
10
|
10
0452529 Circlip |
0452529 |
US $1.61 |
||
|
11
|
11
0454563 Sprocket-drive |
0454563 |
US $51.28 |
||
|
12
|
12
0454564 Brkt-sprocket |
0454564 |
US $6.11 |
||
|
13
|
13
0453505 Bolt-transmission |
0453505 |
US $1.49 |
