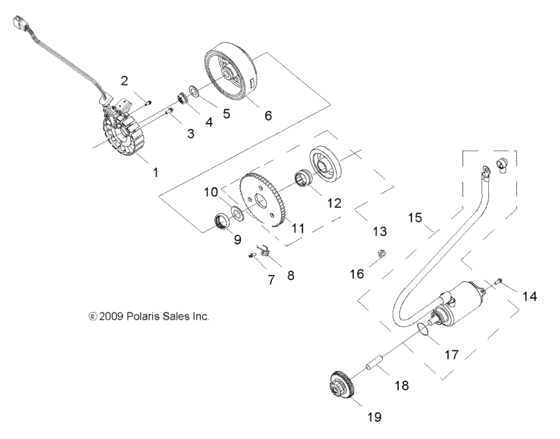

Engine, starting motor (A10VA17AA/AD) Diagram Polaris RANGER RZR 170
- Model code
- A10VA17AA/AD
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454483
Stator
|
0454483 |
— | ||
|
2
|
2
0452456 Screw |
0452456 |
US $0.79 |
||
|
3
|
3
0453519 Bolt |
0453519 |
US $1.49 |
||
|
4
|
4
0450529 Nut-flange(10) |
0450529 |
US $3.75 |
||
|
5
|
5
0450286 Washer(10) |
0450286 |
US $1.89 |
||
|
6
|
6
0454484
Asm-flywheel
|
0454484 |
— | ||
|
7
|
7
0452330 Bolt-hex,flange |
0452330 |
US $1.61 |
||
|
8
|
8
0454595 Brkt-starter/flywheel |
0454595 |
US $10.97 |
||
|
9
|
9
0454485 Nut-lock |
0454485 |
US $18.29 |
||
|
10
|
10
0454486 Washer |
0454486 |
US $3.94 |
||
|
13
|
13
0454594
Asm., one way clutch, gear starter
Incl. 11,12; |
0454594 |
— | ||
|
14
|
14
0450066 Bolt-hex,wshr fc(10) |
0450066 |
US $1.49 |
||
|
15
|
15
0454488
Starter-motor
|
0454488 |
— | ||
| replacement | |||||
|
15
|
15
0454945 Starter-motor |
0454945 |
US $344.66 |
||
|
16
|
16
0450880 Nut-flg w/serr(10) |
0450880 |
US $1.89 |
||
|
17
|
17
0452510 O-ring |
0452510 |
US $3.15 |
||
|
18
|
18
0454489 Shaft-starter,motor |
0454489 |
US $8.26 |
||
|
19
|
19
0454490 Gear-starter |
0454490 |
US $69.70 |
||
