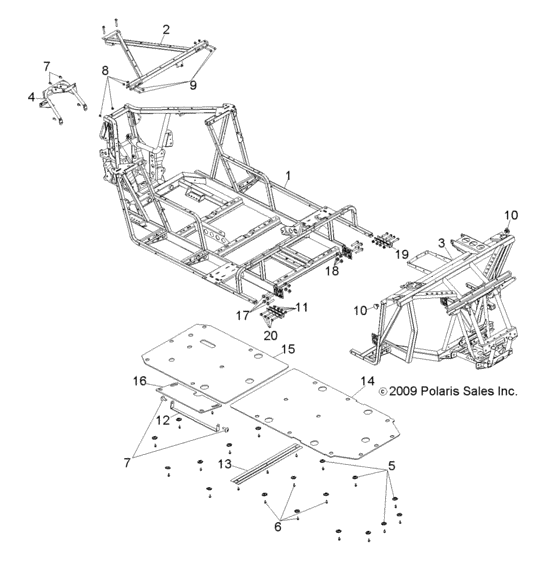

Chassis, main frame and skid plate (R10XH76AA) Diagram Polaris RANGER RZR 4 800 EFI
- Model code
- R10XH76AA
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1017321-458 Weld-mainframe,s4,matte blk |
1017321-458 |
US $3,245.83 |
||
|
2
|
2
1015723-458 Weld-brace, bolt in,matte'blk |
1015723-458 |
US $142.80 |
||
|
3
|
3
1017324-458
Weld-front frame,s4,matte blk
|
1017324-458 |
— | ||
|
4
|
4
1015937-458 Weld-bumper suprt,rear,mt blk |
1015937-458 |
US $275.71 |
||
|
5
|
5
7556065 Washer |
7556065 |
US $6.69 |
||
|
6
|
6
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
7
|
7
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
8
|
8
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
9
|
9
7515319 Bolt |
7515319 |
US $3.26 |
||
|
10
|
10
5437721 Caplug-1,00 x ,65w tube |
5437721 |
US $4.34 |
||
|
11
|
11
7547317
Nut-m8x1,25,hxflg,nylon ins
|
7547317 |
— | ||
|
12
|
12
5253889-458 Brkt-skid,fuel tank,blk |
5253889-458 |
US $44.71 |
||
|
13
|
13
5253941-458 Brkt-skid,coupler,m.blk |
5253941-458 |
US $107.52 |
||
|
14
|
14
5438148-070 Plate-skid, front,plastic,blk |
5438148-070 |
US $119.04 |
||
|
15
|
15
5438355-070 Plate-skid,rear,plastic,blk |
5438355-070 |
US $127.05 |
||
|
16
|
16
5438377-070 Plate-skid,fuel tank,plstc,blk |
5438377-070 |
US $35.67 |
||
|
17
|
17
7518474 Bolt-m10x1,5x55,hx hd flg |
7518474 |
US $3.26 |
||
|
18
|
18
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
19
|
19
5253873-458 Brkt-cplr,frame ext,side,m blk |
5253873-458 |
US $16.24 |
||
|
20
|
20
7516732 Screw(10) |
7516732 |
US $1.89 |
