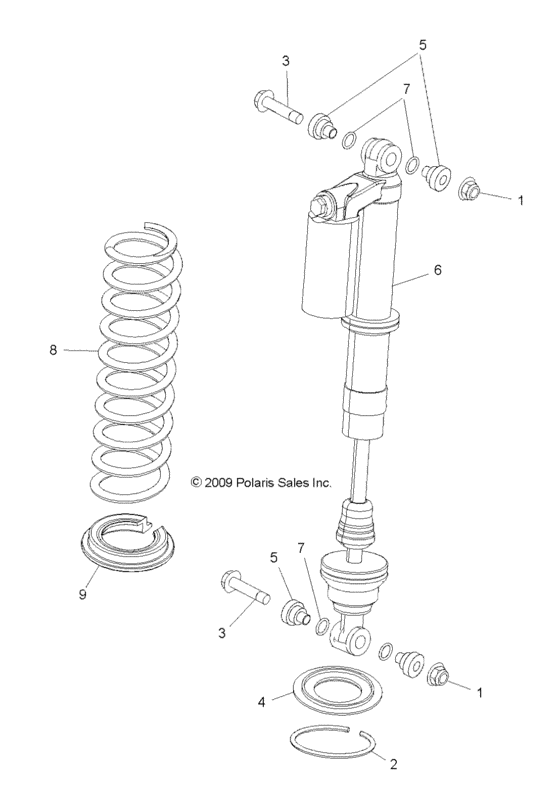

Suspension, front shock mounting (R10XH76AA) Diagram Polaris RANGER RZR 4 800 EFI
- Model code
- R10XH76AA
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
2
|
2
1500829 Retainer-springBuilt 3/07/10 and Before; |
1500829 |
US $3.26 |
||
|
3
|
3
7518474 Bolt-m10x1,5x55,hx hd flg |
7518474 |
US $3.26 |
||
|
4
|
4
1500830 Retainer-ringBuilt 3/07/10 and Before; |
1500830 |
US $27.16 |
||
|
5
|
5
5137275 Bushing, reducer |
5137275 |
US $11.25 |
||
|
6
|
6
7043566
Shock-front,s4
Built 3/07/10 and Before; |
7043566 |
— | ||
|
6
|
6
7043673 Shock-front,rzr 4Built 3/08/10 and After; |
7043673 |
US $797.67 |
||
|
7
|
7
5412290 O-ring,0,600idx,210 |
5412290 |
US $3.29 |
||
|
8
|
8
7043567-385 Spring-comp,front,s4,cld slvr |
7043567-385 |
US $119.04 |
||
|
9
|
9
1500597 Retainer-springBuilt 3/08/10 and After;Used w/7043673 Only; |
1500597 |
US $56.93 |
