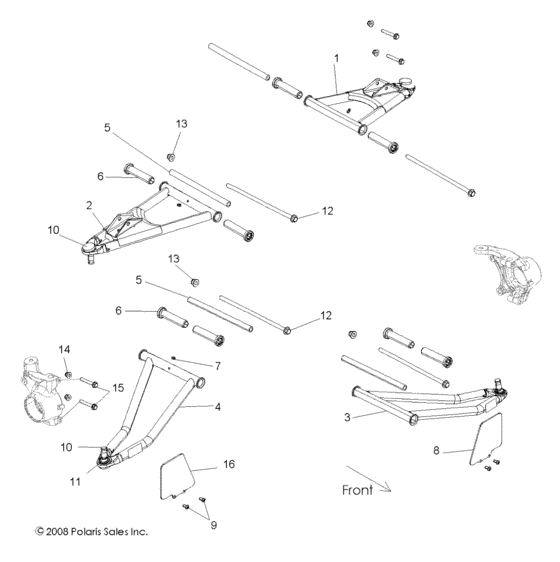

Suspension, front control arms (R09VH76 ALL OPTIONS) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R09VH76
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1015453-458
Weld-ctrl arm,upr,fr,lh,m,blk
|
1015453-458 |
— | ||
|
2
|
2
1015454-458
Weld-ctrl arm,upr,fr,rh,m,blk
|
1015454-458 |
— | ||
|
3
|
3
1015455-458
Weld-ctrl arm,lwr,fr,lh,m,blk
|
1015455-458 |
— | ||
|
4
|
4
1015456-458 Weld-ctrl arm,lwr,fr,rh,m,blk |
1015456-458 |
US $154.79 |
||
|
5
|
5
5136324 Tube-pivot,250,28mm |
5136324 |
US $19.30 |
||
|
6
|
6
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
7
|
7
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
8
|
8
5436620-070 Shield-cv,front,lh,blk |
5436620-070 |
US $21.49 |
||
|
9
|
9
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
10
|
10
7081505 Ball-jointBuilt 4/10/09 and Before; |
7081505 |
US $80.31 |
||
| replacement | |||||
|
10
|
10
7061220 BALL-JOINT,8MM,5140Built 4/10/09 and Before; |
7061220 |
US $80.31 |
||
|
10
|
10
7081580
Ball-joint,chrome stud
Built 4/11/09 and After; |
7081580 |
— | ||
| replacement | |||||
|
10
|
10
7061220 BALL-JOINT,8MM,5140Built 4/11/09 and After; |
7061220 |
US $80.31 |
||
|
11
|
11
7710533 Ring-retainer,external,1,188 |
7710533 |
US $5.25 |
||
|
12
|
12
7518458 Bolt-m10x1,5x270,hxhdflg |
7518458 |
US $9.85 |
||
|
13
|
13
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
14
|
14
7547405 Nut-m8x1,25c10,hx,nyl,din982,z |
7547405 |
US $2.63 |
||
|
15
|
15
7516733 Screw |
7516733 |
US $10.83 |
||
|
16
|
16
5437246-070 Shield-cv,front,rh,blk |
5437246-070 |
US $21.49 |
||
