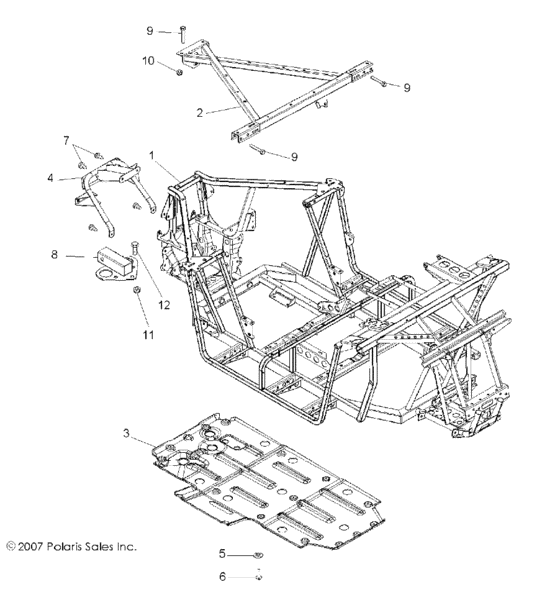

Chassis and main frame (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1015438-458
Frame, main, matte` black
|
1015438-458 |
— | ||
|
2
|
2
1015723-458 Weld-brace, bolt in,matte'blk |
1015723-458 |
US $142.80 |
||
|
3
|
3
5437388-070
Plate, skid, black
|
5437388-070 |
— | ||
|
4
|
4
1015937-458 Weld-bumper suprt,rear,mt blk |
1015937-458 |
US $275.71 |
||
|
5
|
5
7556065 Washer |
7556065 |
US $6.69 |
||
|
6
|
6
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
7
|
7
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
8
|
8
1015857-458 Weld-hitch,matte'blk |
1015857-458 |
US $61.06 |
||
|
9
|
9
7515319 Bolt |
7515319 |
US $3.26 |
||
|
10
|
10
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
11
|
11
7547180 Nut-flanged,3/8-16 nylon-z (10) |
7547180 |
US $3.20 |
||
|
12
|
12
7515522 Bolt |
7515522 |
US $3.26 |
