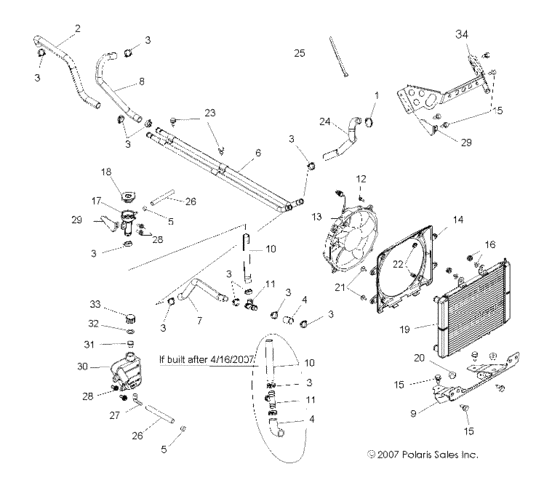

Cooling system (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081174 Clamp-hose,13/16"-1 1/2" |
7081174 |
US $9.85 |
||
|
2
|
2
5413148 Hose-eng outlet,rear |
5413148 |
US $28.58 |
||
|
3
|
3
7080843 Clamp,springband 32/12 (10) |
7080843 |
US $3.75 |
||
|
4
|
4
5413146 Hose-lwr,radiator, shortIf built before 4/16/07; |
5413146 |
US $17.24 |
||
|
4
|
4
5410958
Hose, 1"i,d,
If built after 4/16/07; |
5410958 |
— | ||
|
5
|
5
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
6
|
6
1015938
Weld-coolant tube, alum,
|
1015938 |
— | ||
|
7
|
7
5413066 Hose-lwr,radiator,longIf built before 4/16/07; |
5413066 |
US $59.36 |
||
|
7
|
7
5413372
Hose-lwr,radiator,long
If built after 4/16/07; |
5413372 |
— | ||
|
8
|
8
5413147
Hose-eng inlet,rear
|
5413147 |
— | ||
|
9
|
9
1015842-458
Weld-lower rad mnt,matte'blk
|
1015842-458 |
— | ||
|
10
|
10
5413145 Hose-filler neckIf built before 4/16/07; |
5413145 |
US $20.28 |
||
|
10
|
10
5413371
Hose-radiator,1,0x7,50
If built after 4/16/07; |
5413371 |
— | ||
|
11
|
11
7052397 Connector-t,1",barbed |
7052397 |
US $16.24 |
||
|
12
|
12
7517975 Bolt-m6 hex hd |
7517975 |
US $3.75 |
||
|
13
|
13
2410413 Fan-11" assembly,pkrd |
2410413 |
US $253.10 |
||
|
14
|
14
5434853
Shroud-fan
|
5434853 |
— | ||
|
15
|
15
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
16
|
16
5411975 Grommet/insert-asm |
5411975 |
US $2.28 |
||
|
17
|
17
5435196 Filler-neck,remote,coolant,2fit |
5435196 |
US $15.17 |
||
|
18
|
18
1240044
Cap, pressure
|
1240044 |
— | ||
|
19
|
19
1240319
Asm., radiator, core
|
1240319 |
— | ||
| replacement | |||||
|
19
|
19
1241480 Radiator |
1241480 |
US $584.69 |
||
|
20
|
20
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
21
|
21
7547220 Scr-m6-1,00x20,w/washer(10) |
7547220 |
US $3.75 |
||
|
22
|
22
7547197 Clip-"u",m6,0x1,0 |
7547197 |
US $7.68 |
||
|
23
|
23
7515179 Screw |
7515179 |
US $2.98 |
||
|
24
|
24
5413067
Hose-upper, radiator
|
5413067 |
— | ||
|
25
|
25
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
26
|
26
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
27
|
27
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
28
|
28
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
29
|
29
5250993 Brkt-filler neck |
5250993 |
US $16.24 |
||
|
30
|
30
5436936 Tank-surge |
5436936 |
US $79.31 |
||
|
31
|
31
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
32
|
32
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
33
|
33
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
34
|
34
5250497-458
Brkt-upper mnt,radiator,mt blk
|
5250497-458 |
— | ||
