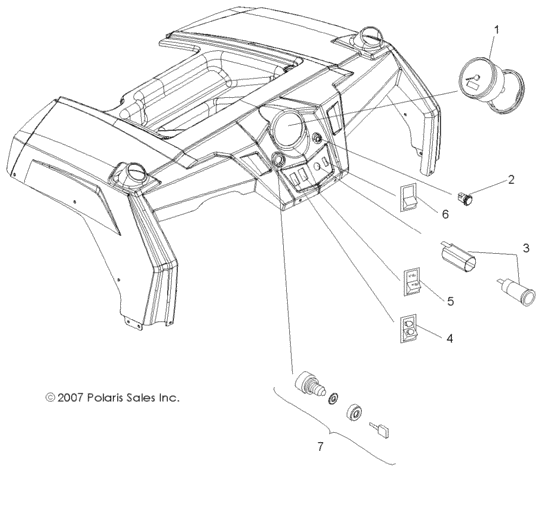

Dash instruments and controls (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280479 Asm-cluster,110mm,w/fuel |
3280479 |
US $595.28 |
||
|
2
|
2
4011501 Switch-momentary, inst, |
4011501 |
US $35.84 |
||
|
3
|
3
4010638 Receptacle-pod mnt,12 volt |
4010638 |
US $15.26 |
||
|
4
|
4
4011500 Switch-headlight |
4011500 |
US $54.18 |
||
|
5
|
5
4010601 Switch-awd,ranger series 10 |
4010601 |
US $73.87 |
||
|
6
|
6
4011074 Switch-worklight,on/off |
4011074 |
US $37.19 |
||
|
7
|
7
4011002
Switch, key
|
4011002 |
— |
