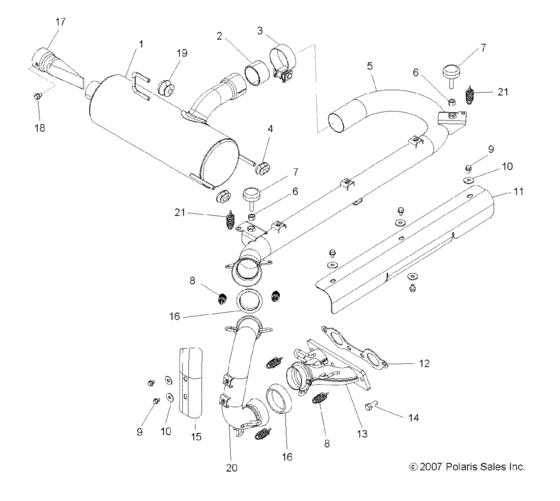

Exhaust system (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1262011-489 Weld-silencer,powder blk |
1262011-489 |
US $664.44 |
||
|
2
|
2
5250091
Seal-exhaust
|
5250091 |
— | ||
|
3
|
3
7081382 Clamp-exhaust,2" |
7081382 |
US $23.94 |
||
|
4
|
4
5436598 Grommet-silencer mount |
5436598 |
US $6.56 |
||
|
5
|
5
1261672-489 Weld-pipe,exhaust,blk |
1261672-489 |
US $341.90 |
||
|
6
|
6
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
7
|
7
3021522 Mount-torque stop |
3021522 |
US $14.28 |
||
|
8
|
8
7041789 Spring |
7041789 |
US $9.07 |
||
|
9
|
9
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
10
|
10
7555935 Washer |
7555935 |
US $3.26 |
||
|
11
|
11
5250077 Plate-shield, exhaust pipe |
5250077 |
US $33.50 |
||
|
12
|
12
5811511 Gasket,26mm id |
5811511 |
US $61.57 |
||
|
13
|
13
1261852-489 Weld-manifold,blk |
1261852-489 |
US $214.18 |
||
|
14
|
14
7517322 Screw(10) |
7517322 |
US $39.40 |
||
|
15
|
15
5250076 Plate-shield, manifold |
5250076 |
US $15.82 |
||
|
16
|
16
3610047 Seal,exh.socket |
3610047 |
US $46.17 |
||
|
17
|
17
1261695
Weld-spark arrestor
|
1261695 |
— | ||
|
18
|
18
7517278 Screw |
7517278 |
US $4.43 |
||
|
19
|
19
5413377 Grommet-silencer mount |
5413377 |
US $6.56 |
||
| replacement | |||||
|
19
|
19
5414307 Grommet-silencer mount |
5414307 |
US $7.88 |
||
|
20
|
20
1261851-489 Weld-headpipe,blk |
1261851-489 |
US $214.18 |
||
|
21
|
21
7041687 Spring |
7041687 |
US $7.88 |
||
