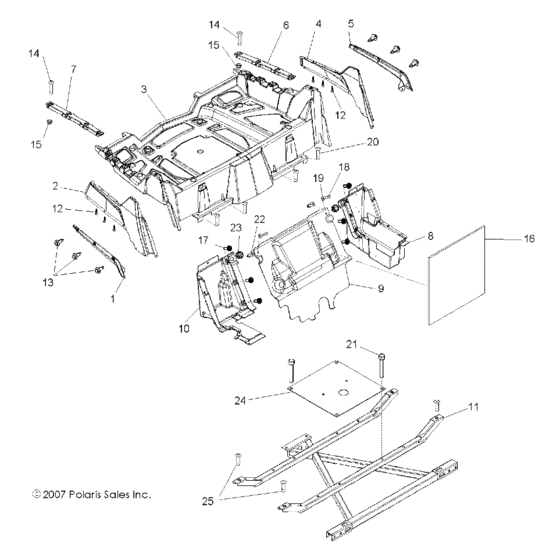

Fenders and rack, rear (R08VH76AD/AG; Built 8/13/07 and Before) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5436627-070
Flair, fender, rear, rh black
|
5436627-070 |
— | ||
|
2
|
2
5436613-293
Fender, rear, rh, red
|
5436613-293 |
— | ||
|
2
|
2
5436613-498
Fender, rear, rh, sagebrush metallic
|
5436613-498 |
— | ||
|
3
|
3
2633389-070
Asm-rack,rr,blk
Incl. warning decals; |
2633389-070 |
— | ||
|
4
|
4
5436612-293
Fender, rear, lh, red
|
5436612-293 |
— | ||
|
4
|
4
5436612-498
Fender, rear, lh, sagebrush metallic
|
5436612-498 |
— | ||
|
5
|
5
5436626-070
Flair-rear fender, lh,blk
|
5436626-070 |
— | ||
|
6
|
6
5436849-070 Brkt-rack, tie down,lh,blk |
5436849-070 |
US $41.76 |
||
|
7
|
7
5436850-070 Brkt-rack, tie down,rh,blk |
5436850-070 |
US $41.76 |
||
|
8
|
8
5437395-070 Panel-divider,rear,lh,blk |
5437395-070 |
US $127.05 |
||
|
9
|
9
5437394-070 Panel-divider,rear,main,blk |
5437394-070 |
US $183.16 |
||
|
10
|
10
5437396-070 Panel-divider, rear,rh,blk |
5437396-070 |
US $65.99 |
||
|
11
|
11
1015565-458
Weld-rack support,rr,matte'blk
|
1015565-458 |
— | ||
|
12
|
12
7517561 Screw |
7517561 |
US $5.25 |
||
|
13
|
13
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
14
|
14
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
15
|
15
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
16
|
16
5813298 Foam-sound attn,cut |
5813298 |
US $45.69 |
||
|
17
|
17
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
18
|
18
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
19
|
19
7555919 Washer |
7555919 |
US $6.21 |
||
|
20
|
20
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
21
|
21
7518382 Bolt-5/16-18x2,25 flg tap/r-m |
7518382 |
US $2.92 |
||
|
22
|
22
5135658 Pin-hood latch |
5135658 |
US $15.70 |
||
|
23
|
23
5412994 Grommet-seat latch |
5412994 |
US $1.77 |
||
|
24
|
24
5251419
Shield-box
|
5251419 |
— | ||
|
25
|
25
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
