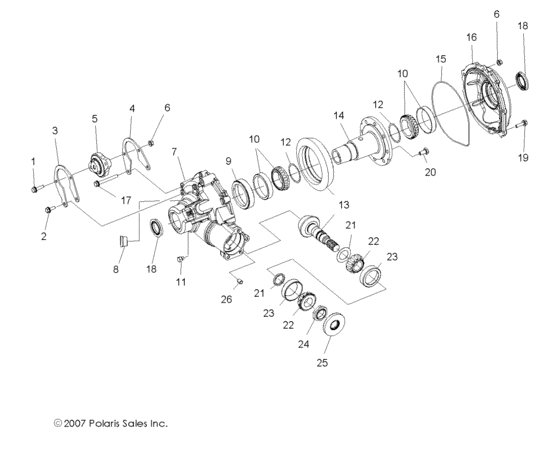

Gearcase, differential, internal components (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3234512 Scr-5/16-18x1,125(026hm103-1) |
3234512 |
US $3.75 |
||
|
2
|
2
3234511 Scr-5/16-18x,75,fl(026hm103-4) |
3234511 |
US $2.98 |
||
|
3
|
3
5250016 Brkt-diff mnt rear,rh |
5250016 |
US $26.41 |
||
|
4
|
4
5250329 Brkt-diff mnt rear,lh |
5250329 |
US $26.41 |
||
|
5
|
5
1332450 Mount-diff, rear |
1332450 |
US $56.79 |
||
|
6
|
6
3234500 Nut-flange(026hn107) |
3234500 |
US $2.45 |
||
|
7
|
7
3234507
Asm-drv housing,rr(026kh105x)
Incl. 13,18,21-25; |
3234507 |
— | ||
|
8
|
8
5133736 Plug-fill/check |
5133736 |
US $18.32 |
||
|
9
|
9
2203502
Collar-bearing asm,
|
2203502 |
— | ||
|
10
|
10
3514435 Bearing-tapered roller026hd101Incl. 23; |
3514435 |
US $193.01 |
||
|
11
|
11
5133731 Plug-drain |
5133731 |
US $9.15 |
||
|
12
|
12
3234504 Kit-shim,spool(026kf101) |
3234504 |
US $25.43 |
||
|
14
|
14
3234505
Axle spool(026dc110)
|
3234505 |
— | ||
|
15
|
15
5412338 O-ring-housing halves 026hh103 |
5412338 |
US $10.03 |
||
|
16
|
16
3234506 Asm-cover,rear(026kx100x)Incl. 18; |
3234506 |
US $312.94 |
||
|
17
|
17
3234501 Scr-5/16-18x2,750(026hm103-3) |
3234501 |
US $4.73 |
||
|
18
|
18
3610117
Seal, oil, shaft
|
3610117 |
— | ||
| replacement | |||||
|
18
|
18
3610146 Seal-oil,shaft,026hh115 |
3610146 |
US $20.95 |
||
|
19
|
19
7518172 Bolt-hex,flanged,026hm103 |
7518172 |
US $2.45 |
||
|
20
|
20
7518173 Bolt-hex 41221 |
7518173 |
US $3.26 |
||
|
26
|
26
3234503 Bushing-dowel(026hp105) |
3234503 |
US $2.77 |
||
