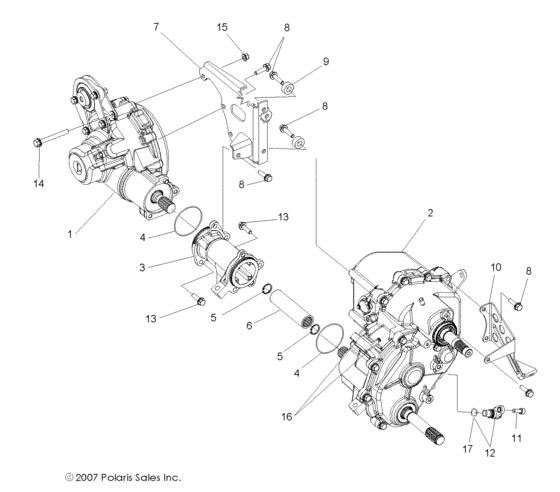

Gearcase, differential mounting (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3234519
Asm., carrier, axle, rear
|
3234519 |
— | ||
| replacement | |||||
|
1
|
1
3235460 Asm-carrier,rr(026kh127x) |
3235460 |
US $1,496.88 |
||
|
2
|
2
3234518
Asm-sub,gearcase(026su100x)
|
3234518 |
— | ||
|
3
|
3
3234517
Tube, connector
|
3234517 |
— | ||
|
4
|
4
3234516 O ring(026hh107) |
3234516 |
US $2.28 |
||
|
5
|
5
3234515 Ring-retaining(026hr106) |
3234515 |
US $2.98 |
||
|
6
|
6
3234514 Coupling-splined(026ta103) |
3234514 |
US $225.89 |
||
| replacement | |||||
|
6
|
6
3235065 Coupling, splined |
3235065 |
US $225.89 |
||
|
7
|
7
3234513 Brkt-stabilizer(026ht106) |
3234513 |
US $127.05 |
||
|
8
|
8
3234512 Scr-5/16-18x1,125(026hm103-1) |
3234512 |
US $3.75 |
||
|
9
|
9
3234572 Spacer(026hd108) |
3234572 |
US $4.24 |
||
|
10
|
10
1015951 Weld-cable mnt,rear,shift,zinc |
1015951 |
US $236.34 |
||
|
11
|
11
3234509 Scr-5/16-18x,750(026hm115-1) |
3234509 |
US $5.22 |
||
|
12
|
12
3234508
Asm., sensor, ground speed
Incl. 17; |
3234508 |
— | ||
|
13
|
13
7518172 Bolt-hex,flanged,026hm103 |
7518172 |
US $2.45 |
||
|
14
|
14
3234501 Scr-5/16-18x2,750(026hm103-3) |
3234501 |
US $4.73 |
||
|
15
|
15
3234500 Nut-flange(026hn107) |
3234500 |
US $2.45 |
||
|
16
|
16
7518378 Stud-3/8-24x1.38,press fit-z |
7518378 |
US $2.63 |
||
|
17
|
17
3234302 O-ring, -113 |
3234302 |
US $9.24 |
||
