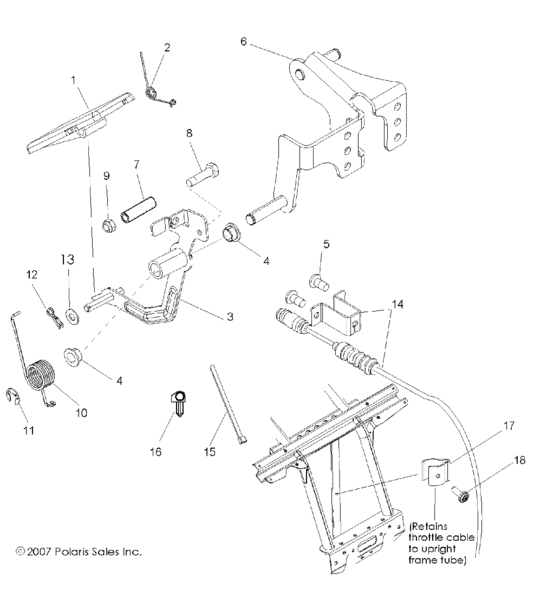

Throttle pedal (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5437042
Pedal, throttle
|
5437042 |
— | ||
|
2
|
2
7043078 Spring-throttle |
7043078 |
US $7.09 |
||
|
3
|
3
1015482-458 Weld-throttle pedal,matte'blk |
1015482-458 |
US $504.19 |
||
|
4
|
4
5437284 Bushing-pedal pivot |
5437284 |
US $11.11 |
||
|
5
|
5
7515177 Screw |
7515177 |
US $3.94 |
||
|
6
|
6
1015840 Weld-pedal mnt,zinc |
1015840 |
US $32.01 |
||
|
7
|
7
5135416
Spacer-throttle
|
5135416 |
— | ||
|
8
|
8
7512130 Bolt |
7512130 |
US $2.45 |
||
|
9
|
9
7542153 Nut,nylok,flanged |
7542153 |
US $5.25 |
||
|
10
|
10
7043418 Spring-accelerator,heavy |
7043418 |
US $5.11 |
||
|
11
|
11
7710901 E ring |
7710901 |
US $7.21 |
||
|
12
|
12
7661140
Pin-clip,14mm
|
7661140 |
— | ||
|
13
|
13
7555954 Washer |
7555954 |
US $2.45 |
||
|
14
|
14
7081341
Cable, throttle
|
7081341 |
— | ||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
17
|
17
5437368 Retainer-cable,1" |
5437368 |
US $10.73 |
||
|
18
|
18
7512024 Screw |
7512024 |
US $2.45 |
