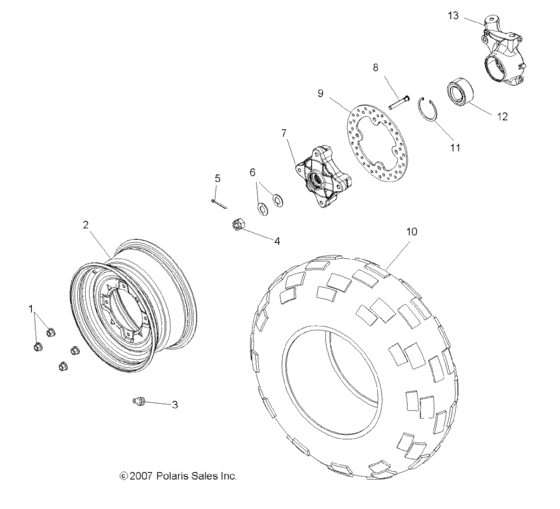

Wheel, front (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
|
2
|
2
1520263-463 Weld-rim,front,10 ga,flat blk |
1520263-463 |
US $142.80 |
||
|
3
|
3
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
4
|
4
7547337 Nut-m18x1,5,castle,zinc/yellow |
7547337 |
US $2.45 |
||
|
5
|
5
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
6
|
6
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
7
|
7
5135409 Hub-wheel, front(mach) |
5135409 |
US $78.79 |
||
|
8
|
8
7518654 Stud-3/8-24x2,68 prs fit-z |
7518654 |
US $3.75 |
||
|
9
|
9
5250068 Disc-brake, front, 9,25" od |
5250068 |
US $64.02 |
||
|
10
|
10
5413060
Tire-front, 25x8-12
|
5413060 |
— | ||
|
11
|
11
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
12
|
12
3514583
Bearing-ball,sealed,40x72x33
|
3514583 |
— | ||
| replacement | |||||
|
12
|
12
2204717 Kit-service hub w/bearing |
2204717 |
US $98.47 |
||
|
13
|
13
5135442 Carrier-bearing,wheel,lh(mach) |
5135442 |
US $182.19 |
||
|
13
|
13
5135443 Carrier-bearing,wheel,rh(mach) |
5135443 |
US $123.11 |
||
