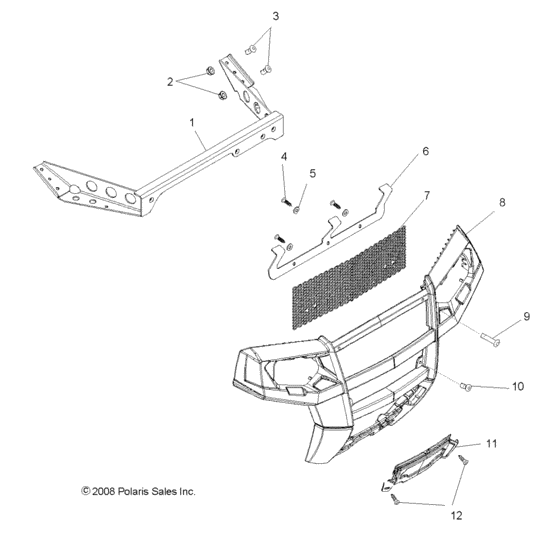

Body, front bumper (R09VH76AX) Diagram Polaris RANGER RZR "S" 800 EFI
- Model code
- R09VH76AX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1016715-329 Weld-bumper support,frt,blk |
1016715-329 |
US $492.87 |
||
|
2
|
2
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— | ||
|
3
|
3
7518656 Bolt-m6x1,0x15,ph/tx-olive d |
7518656 |
US $3.94 |
||
|
4
|
4
7517441 Screw, ,75 |
7517441 |
US $3.26 |
||
|
5
|
5
7556034 Washer |
7556034 |
US $3.75 |
||
|
6
|
6
5251992 Brkt-bumper,retainer,yz |
5251992 |
US $54.27 |
||
|
7
|
7
5250339-458
Brkt-screen,radiator,matte blk
|
5250339-458 |
— | ||
|
8
|
8
2633417-070 Asm-bumper,fr,blk |
2633417-070 |
US $290.61 |
||
|
9
|
9
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
10
|
10
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
||
|
11
|
11
5438206-070 Cover-winch pocket,blkBuilt 1/30/08 and After; |
5438206-070 |
US $24.43 |
||
|
11
|
11
5436611-070
Cover, winch pocket, black
Built 1/29/08 and Before; |
5436611-070 |
— | ||
|
12
|
12
7512026
Screw
|
7512026 |
— |
