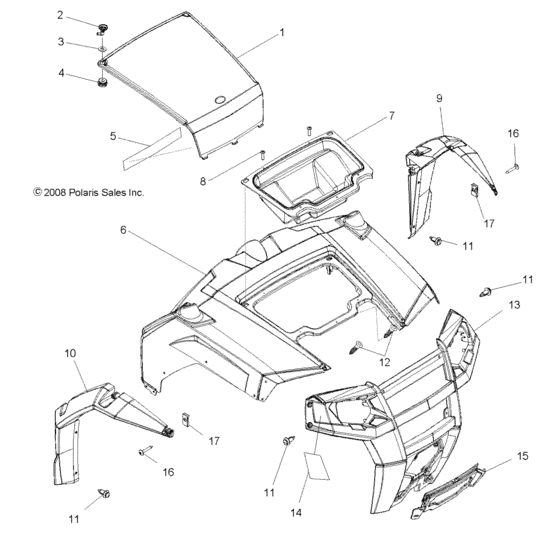

Body, hood and front body work (R09VH76AX) Diagram Polaris RANGER RZR "S" 800 EFI
- Model code
- R09VH76AX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5437469-464 Hood-center access,pntd,s,blk |
5437469-464 |
US $516.99 |
||
|
2
|
2
7081500 Latch-1/4 turn |
7081500 |
US $7.68 |
||
|
3
|
3
7555919 Washer |
7555919 |
US $6.21 |
||
|
4
|
4
5413428 Grommet-latch |
5413428 |
US $1.98 |
||
|
5
|
5
5813300 Pad-hood |
5813300 |
US $12.20 |
||
|
6
|
6
2633834-402 Asm-hood,painted,basic,t slvrIncl. Warning Decals; |
2633834-402 |
US $1,364.90 |
||
|
7
|
7
5437399-070 Bucket-under hood storage,blk |
5437399-070 |
US $75.85 |
||
|
8
|
8
7512026
Screw
|
7512026 |
— | ||
|
9
|
9
5437659-070 Front fender,flair,lh,lt,blk |
5437659-070 |
US $43.54 |
||
|
10
|
10
5437660-070 Front fender,flair,rh,lt,blk |
5437660-070 |
US $43.54 |
||
|
11
|
11
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
12
|
12
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
||
|
13
|
13
2633417-070 Asm-bumper,fr,blk |
2633417-070 |
US $290.61 |
||
|
14
|
14
7175518 Decal-reflector,amber,rh |
7175518 |
US $14.28 |
||
|
14
|
14
7175517 Decal-reflector,amber,lh |
7175517 |
US $14.28 |
||
|
15
|
15
5438206-070 Cover-winch pocket,blkBuilt 1/30/08 and After; |
5438206-070 |
US $24.43 |
||
|
15
|
15
5436611-070
Cover, winch pocket, black
Built 1/29/08 and Before; |
5436611-070 |
— | ||
|
16
|
16
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
17
|
17
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
