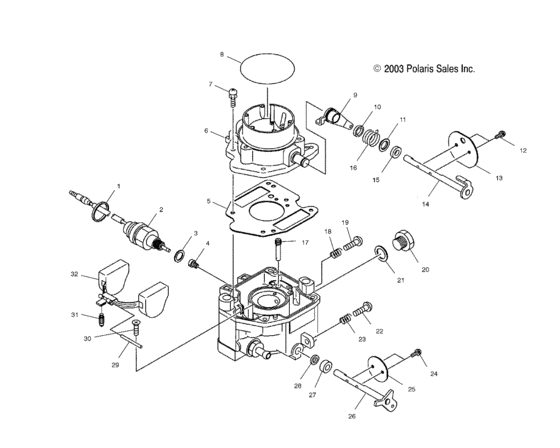

Carburetor assy (A04RB63AA) Diagram Polaris RANGER TM
- Model code
- A04RB63AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3088339
Clamp-solenoid wire
|
3088339 |
— | ||
|
2
|
2
3089512
Solenoid valve asm
|
3089512 |
— | ||
|
3
|
3
3088332
Gasket
|
3088332 |
— | ||
|
4
|
4
3088426
Jet-main,#132
132; |
3088426 |
— | ||
|
5
|
5
3088799
Gasket,air horn
|
3088799 |
— | ||
|
6
|
6
3088798 Asm,carburetorIncl. All; |
3088798 |
US $561.33 |
||
|
7
|
7
3088326 Screw-air horn set |
3088326 |
US $0.79 |
||
|
8
|
8
3088435 O-ring-air horn |
3088435 |
US $13.20 |
||
|
9
|
9
3088742 Lever,choke asm, |
3088742 |
US $21.49 |
||
|
10
|
10
3088333 Ring-choke lever |
3088333 |
US $1 |
||
|
11
|
11
3088744 Collar,choke |
3088744 |
US $4.73 |
||
|
12
|
12
3088336 Screw-valve set |
3088336 |
US $0.79 |
||
|
13
|
13
3088330 Valve-choke |
3088330 |
US $13.20 |
||
|
14
|
14
3088745
Shaft, choke
|
3088745 |
— | ||
|
15
|
15
3088335
Filter-choke shaft
|
3088335 |
— | ||
|
16
|
16
3088743 Spring,choke |
3088743 |
US $5.11 |
||
|
17
|
17
3088324
Jet-slow,#60
60; |
3088324 |
— | ||
|
18
|
18
3088283 Spring-drain |
3088283 |
US $3.45 |
||
|
19
|
19
3088282 Screw-drain |
3088282 |
US $3.26 |
||
|
20
|
20
3088433 Plug |
3088433 |
US $46.08 |
||
|
21
|
21
3088434 Gasket |
3088434 |
US $2.07 |
||
|
22
|
22
3088800
Screw,throttle adjust
|
3088800 |
— | ||
|
23
|
23
3088325 Spring-adjust screw |
3088325 |
US $2.77 |
||
|
24
|
24
3088344 Screw-valve set |
3088344 |
US $0.79 |
||
|
25
|
25
3088432 Throttle-valve |
3088432 |
US $15.02 |
||
|
26
|
26
3088748 Shaft ay,throttle |
3088748 |
US $43.33 |
||
|
27
|
27
3088340 Collar-throttle shaft |
3088340 |
US $2.45 |
||
|
28
|
28
3088291 Filter-throttle shaft |
3088291 |
US $9.85 |
||
|
29
|
29
3088329
Pin-float
|
3088329 |
— | ||
|
30
|
30
3088337
Screw-float pin set
|
3088337 |
— | ||
|
31
|
31
3088290 Valve-float |
3088290 |
US $14.28 |
||
|
32
|
32
3088746
Float
|
3088746 |
— |
