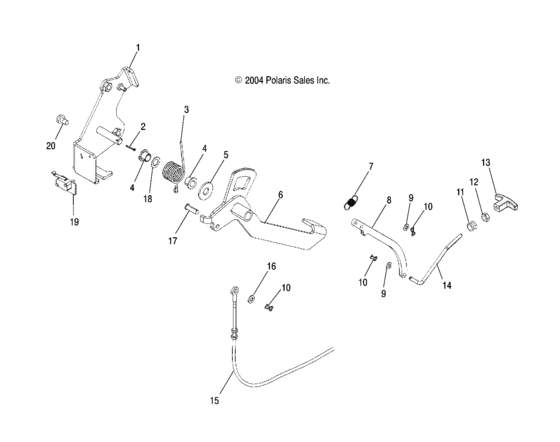

Park brake pedal (R05RB63AA) Diagram Polaris RANGER TM
- Model code
- R05RB63AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1014724
Mount, park brake
|
1014724 |
— | ||
|
2
|
2
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
3
|
3
7043073 Spring-lever return |
7043073 |
US $92.16 |
||
|
4
|
4
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
5
|
5
7555804 Washer |
7555804 |
US $3.26 |
||
|
6
|
6
1014723
Lever, park
|
1014723 |
— | ||
|
7
|
7
7042057 Spring-catch,parking brake |
7042057 |
US $35.44 |
||
|
8
|
8
5248150
Latch, park brake
|
5248150 |
— | ||
|
9
|
9
7555827 Washer |
7555827 |
US $3.26 |
||
|
10
|
10
7661140
Pin-clip,14mm
|
7661140 |
— | ||
|
11
|
11
5410437 Grommet (10) |
5410437 |
US $3.41 |
||
|
12
|
12
7546701 Nut(10) |
7546701 |
US $1.49 |
||
|
13
|
13
7081013 Handle-parking brake |
7081013 |
US $56.14 |
||
|
14
|
14
5248157 Rod-handle,park release |
5248157 |
US $22.66 |
||
|
16
|
16
7558302 Washer,wrought |
7558302 |
US $2.45 |
||
|
17
|
17
7661106 Pin-5/16x1 clevis |
7661106 |
US $4.43 |
||
|
18
|
18
7555919 Washer |
7555919 |
US $6.21 |
||
|
19
|
19
4011093 Switch-park brake sensor |
4011093 |
US $59.26 |
||
|
20
|
20
7515547 Screw |
7515547 |
US $9.85 |
