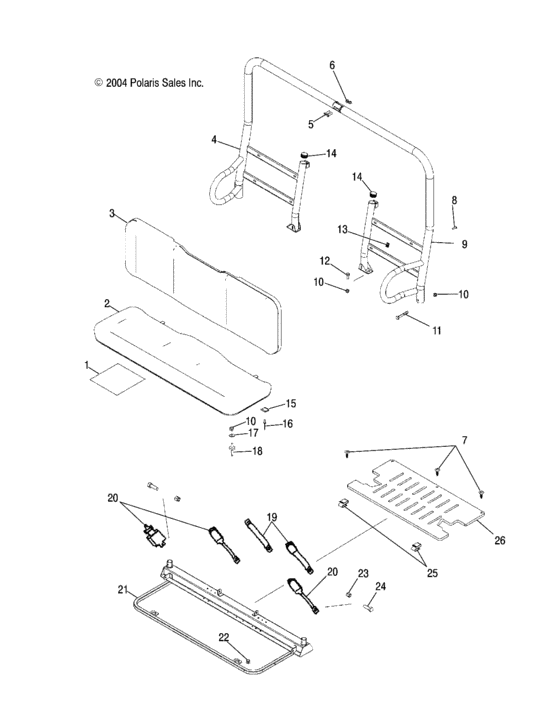

Seat (R05RB63AA) Diagram Polaris RANGER TM
- Model code
- R05RB63AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5812295 Foil-seat |
5812295 |
US $8.17 |
||
|
2
|
2
2682638-317
Seat, bottom (incl. 4,10,11,12,13,16]
Incl. 1,10,15-18; |
2682638-317 |
— | ||
|
3
|
3
2683124-317
Asm-seat,back,gunmetal
|
2683124-317 |
— | ||
|
4
|
4
1014846 Asm-seat back,rightIncl. Decal 7172676; |
1014846 |
US $378.14 |
||
|
5
|
5
7517935 Scr-3/8,16x1 1/4 hxsoc cs zy3 |
7517935 |
US $3.26 |
||
|
6
|
6
7542451
Nut, nylok(10) *
|
7542451 |
— | ||
|
7
|
7
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
8
|
8
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
9
|
9
1014845 Asm-seat back,leftIncl. Decal 7172676; |
1014845 |
US $341.50 |
||
|
10
|
10
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
11
|
11
7515339 Bolt |
7515339 |
US $3.26 |
||
|
12
|
12
7515321 Bolt |
7515321 |
US $1.89 |
||
|
13
|
13
7670096 Nut (10) |
7670096 |
US $1.77 |
||
|
14
|
14
5433305 Cap-bumper,end (10) |
5433305 |
US $3.26 |
||
|
15
|
15
5245676 Tab-mount,seat |
5245676 |
US $10.97 |
||
|
16
|
16
7621479 Rivet(50) |
7621479 |
US $2.45 |
||
|
17
|
17
7555734 Washer,flat(10) |
7555734 |
US $0.79 |
||
|
18
|
18
5910096 Pin-seat latch |
5910096 |
US $14.09 |
||
|
19
|
19
2632422
Seat,belt,ctr,asm,r
|
2632422 |
— | ||
|
20
|
20
2632421 Seat belt,asm, |
2632421 |
US $214.18 |
||
|
21
|
21
1014753-067
Base, cab/seat, black
If built before 11/15/04; |
1014753-067 |
— | ||
|
21
|
21
1015102-067
Base, cab/seat, black
If built after 11/15/04; |
1015102-067 |
— | ||
|
22
|
22
5412507 Grommet |
5412507 |
US $9.19 |
||
|
23
|
23
7542525 Nut, nylok |
7542525 |
US $2.45 |
||
|
24
|
24
7512539 Bolt |
7512539 |
US $3.26 |
||
|
25
|
25
7670167 Clip-s |
7670167 |
US $1.77 |
||
|
26
|
26
5812572 Guard-transmission,top |
5812572 |
US $26.41 |
