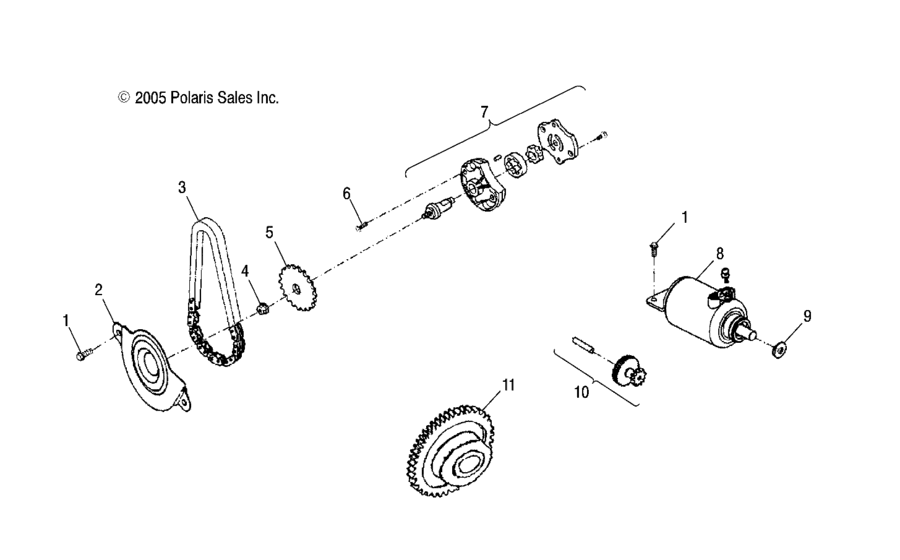

Generator/starting motor (A06SB20AA/AB) Diagram Polaris SAWTOOTH 200
- Model code
- A06SB20AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452330 Bolt-hex,flange |
0452330 |
US $1.61 |
||
|
2
|
2
0452506 Cover-oil pump |
0452506 |
US $6.91 |
||
|
3
|
3
0452505 Chain-oil pump |
0452505 |
US $67.13 |
||
|
4
|
4
0450880 Nut-flg w/serr(10) |
0450880 |
US $1.89 |
||
|
5
|
5
0452504 Sprocket-oil pump |
0452504 |
US $8.17 |
||
|
6
|
6
0452511 Screw |
0452511 |
US $0.79 |
||
|
7
|
7
0452503 Pump-oil |
0452503 |
US $123.11 |
||
|
8
|
8
0453024
Motor-starting,phoenix
|
0453024 |
— | ||
|
9
|
9
0452510 O-ring |
0452510 |
US $3.15 |
||
|
10
|
10
0452507
Asm-gear,starter
|
0452507 |
— | ||
|
11
|
11
0452508
Gear comp starting clutch
|
0452508 |
— |
