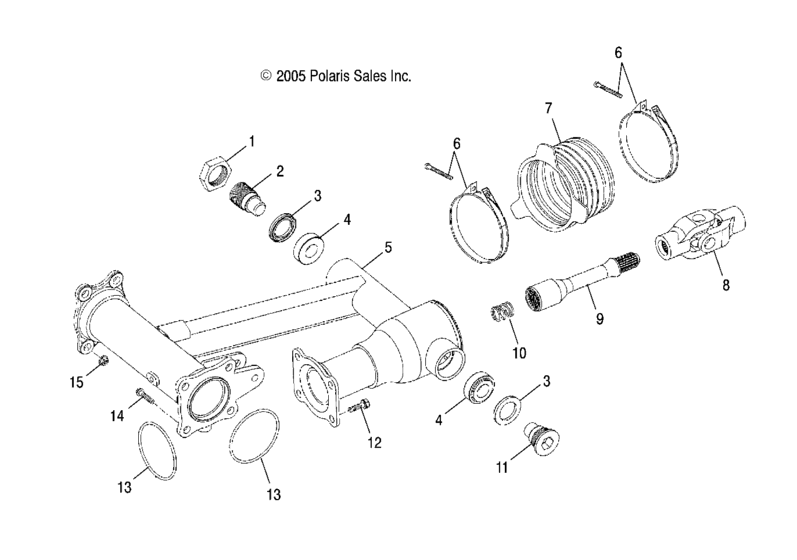

Swing arm, rear (A06SB20AA/AB) Diagram Polaris SAWTOOTH 200
- Model code
- A06SB20AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452612 Nut-lock,m30x1,35 |
0452612 |
US $21.12 |
||
|
2
|
2
0452611 Bolt-pivot |
0452611 |
US $39.27 |
||
|
3
|
3
0452609 Seal-oil |
0452609 |
US $22.66 |
||
|
4
|
4
0452608 Bearing |
0452608 |
US $82.71 |
||
|
5
|
5
0452604-067 Swing arm-blk |
0452604-067 |
US $247.19 |
||
|
6
|
6
0452617 Clamp |
0452617 |
US $8.66 |
||
|
7
|
7
0452616 Joint boot |
0452616 |
US $14.61 |
||
|
8
|
8
0452607 Joint-universal |
0452607 |
US $259.96 |
||
|
9
|
9
0452606 Drive shaft |
0452606 |
US $110.29 |
||
|
10
|
10
0452605 Spring |
0452605 |
US $6.11 |
||
|
11
|
11
0452610 Bolt-pivot |
0452610 |
US $73.97 |
||
|
12
|
12
0452614 Bolt-hex,flange |
0452614 |
US $1.77 |
||
|
13
|
13
0452613 O-ring |
0452613 |
US $3.26 |
||
|
14
|
14
0452615 Bolt-joint,m10x30 |
0452615 |
US $2.92 |
||
|
15
|
15
0450882
Nut-lock,nylon 90350-10000-uc
|
0450882 |
— |
