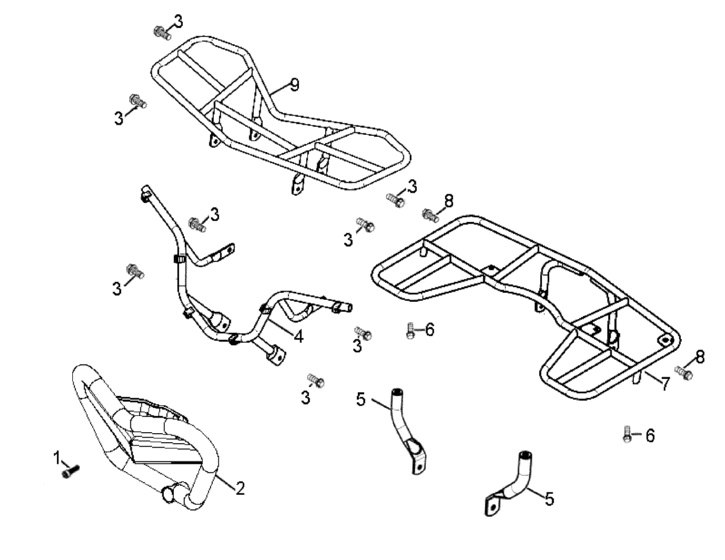

Bumper (A07SB20AA) Diagram Polaris SAWTOOTH 200
- Model code
- A07SB20AA
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452620 Bolt-hax,flange,m10xp1,25xl25 |
0452620 |
US $7.35 |
||
|
2
|
2
0453792-385
Bumper-sawtooth,silver
|
0453792-385 |
— | ||
|
3
|
3
0452858 Bolt-hex,w/spring washer |
0452858 |
US $1 |
||
|
4
|
4
0453227 Bumper |
0453227 |
US $117.20 |
||
|
5
|
5
0453252 Brkt-rack,rear |
0453252 |
US $157.15 |
||
|
6
|
6
0453793
Bolt
|
0453793 |
— | ||
|
7
|
7
0453222-067 Rack-rear,blk |
0453222-067 |
US $219.78 |
||
|
8
|
8
0452030 Bolt-hex,14,washer,nylock |
0452030 |
US $2.98 |
||
|
9
|
9
0453223-067 Rack-front,blk |
0453223-067 |
US $219.78 |
