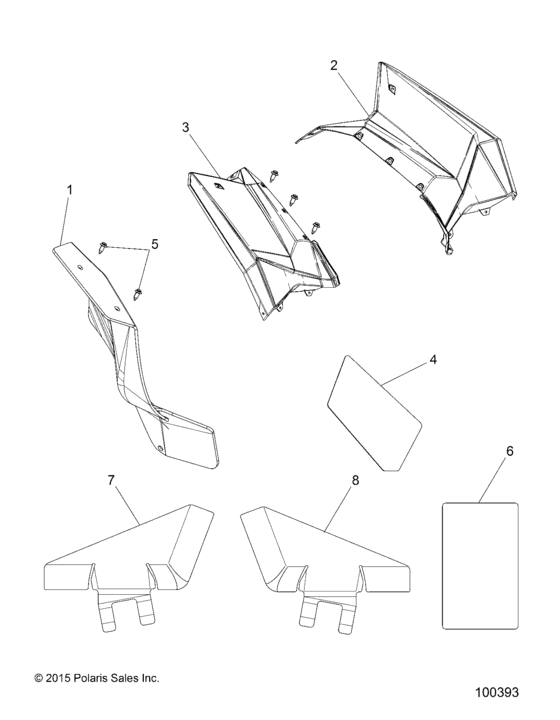

Body, Rear Cab And Heat Shields (A16SVE95NM/AN2 (100393)) Diagram Polaris SCRAMBLER 1000 MD
- Model code
- A16SVE95NM/AN2
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5256534 Shield-heat,cab,rear |
5256534 |
US $30.33 |
||
|
2
|
2
2635752-599 ASM-RR,CAB,LH,SCRAMBLER,EU,WHTN2 |
2635752-599 |
US $319.06 |
||
|
2
|
2
2635753-632 ASM-RR,CAB,LH,SCRAM,EU,M.TTNNM |
2635753-632 |
US $319.06 |
||
|
3
|
3
5439326-599 CAB-REAR,RH,WHITE LIGHTNINGN2 |
5439326-599 |
US $244.23 |
||
|
3
|
3
5439706-632 CAB-RR,RH,SCR 850,PNTD,M.TITANNM |
5439706-632 |
US $328.49 |
||
|
4
|
4
5813924 Foil-fiber,cab,rear |
5813924 |
US $18.32 |
||
|
5
|
5
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
6
|
6
5814113 SHIELD-HEAT,FOIL,FRAME |
5814113 |
US $26.41 |
||
|
7
|
7
5814111 SHEILD-HEAT,FOIL,STORAGE,LH |
5814111 |
US $32.83 |
||
|
8
|
8
5814112 SHIELD-HEAT,FOIL,STORAGE,RH |
5814112 |
US $32.83 |
