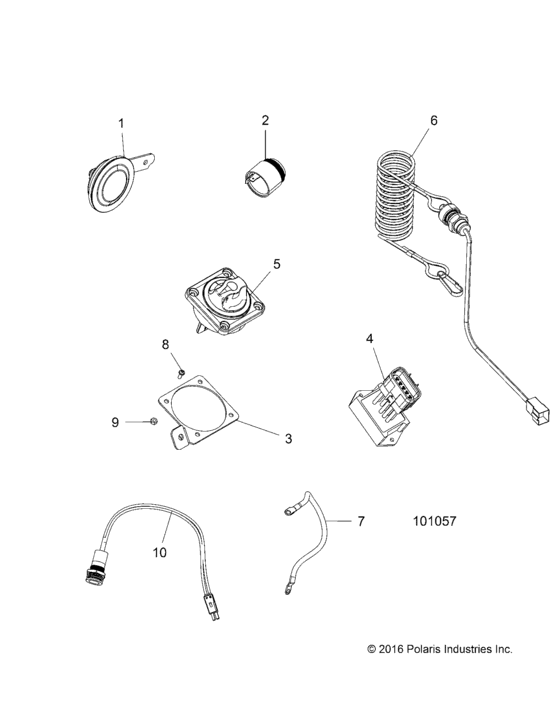

Electrical, Horn And Battery Switch (A16SVS95CM/T95C2 (101057)) Diagram Polaris SCRAMBLER 1000 TRACTOR
- Model code
- A16SVS95CM/T95C2
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4011579 Horn-disc |
4011579 |
US $81.76 |
||
|
2
|
2
4013211 Alarm-brake,warning |
4013211 |
US $51.28 |
||
|
3
|
3
5262293-458 BRKT-BATTERY ISOL,300A,TRC,BLK |
5262293-458 |
US $8.17 |
||
|
4
|
4
4015919 Module-Flash,turn,hazrd,trailr |
4015919 |
US $156.03 |
||
|
5
|
5
4015966 SWITCH-BATTERY ISOLATION,300A |
4015966 |
US $124.06 |
||
|
6
|
6
4015984 SWITCH-TETHER,TRC,800MM,PROX |
4015984 |
US $49.61 |
||
|
7
|
7
4016139 CABLE-BATTERY TO ISOLATOR |
4016139 |
US $9.15 |
||
|
8
|
8
7512024 Screw |
7512024 |
US $2.45 |
||
|
9
|
9
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
10
|
10
2413559 Asm-Light Warn Brake Failure To 1/4/2016 |
2413559 |
US $102.39 |
||
|
10
|
10
2413616 Asm-Light Warn Brake Failure From 1/4/2016 |
2413616 |
US $99.24 |
