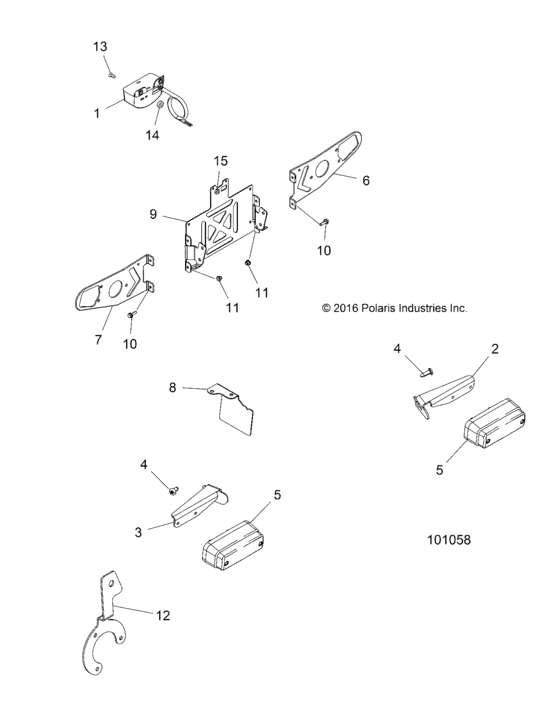

Electrical, Turn Signals And License Plate (A16SVS95CM/T95C2) Diagram Polaris SCRAMBLER 1000 TRACTOR
- Model code
- A16SVS95CM/T95C2
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2411278 Light, license plate |
2411278 |
US $134.70 |
||
|
2
|
2
5262446-458 Brkt-Turn Sig,scrm,trc,lh,blk |
5262446-458 |
US $6.14 |
||
|
3
|
3
5262447-458 Brkt-Turn Sig,scrm,trc,rh,blk |
5262447-458 |
US $6.14 |
||
|
4
|
4
7519045 Scr-tx truss-#14x3/4,hi/lo zbk |
7519045 |
US $2.63 |
||
|
5
|
5
2411271 Signal-turn,front,tractor |
2411271 |
US $162.51 |
||
|
6
|
6
5261407-458 Brkt-Taillight,lh,blk |
5261407-458 |
US $53.78 |
||
|
7
|
7
5261408-458 Brkt-Taillight,rh,blk |
5261408-458 |
US $53.78 |
||
|
8
|
8
5261971-458 BRKT-VIN,PLATE,M.BLK |
5261971-458 |
US $25.60 |
||
|
9
|
9
5262241-458 BRKT-RR,LIC PLATE,SCRM,TRC,BLK |
5262241-458 |
US $7.89 |
||
|
10
|
10
7516822
Screw
|
7516822 |
— | ||
|
11
|
11
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
12
|
12
5261661-458 BRKT-TRAIL.SOCK,SPMN 1K,M.BLK |
5261661-458 |
US $18.73 |
||
|
13
|
13
7512025 Screw |
7512025 |
US $3.26 |
||
|
14
|
14
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
15
|
15
7546601
Nut, nylok(10)
|
7546601 |
— |
