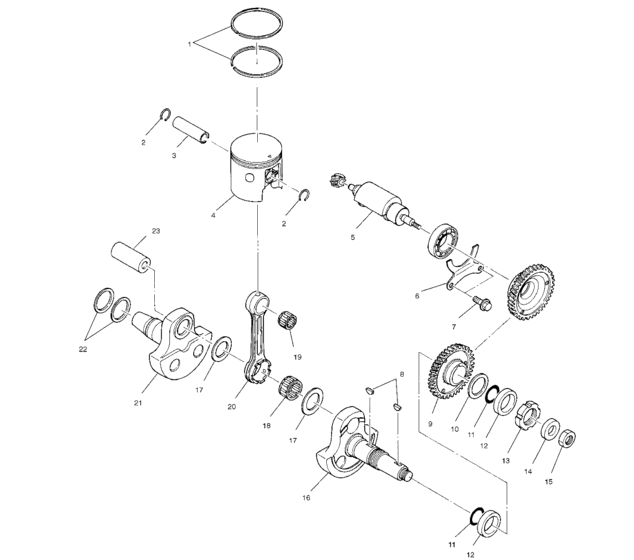

Piston and crankshaft (A00BA38CA) Diagram Polaris SCRAMBLER 300 2X4
- Model code
- A00BA38CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084738 Ring,piston,(,25mm o/s)*.25MM O/S;0.25mm/.010 O/S; |
3084738 |
US $29.16 |
||
|
1
|
1
3084739 Ring,piston,(,50mm o/s).50MM O/S;0.50mm/.020 O/S; |
3084739 |
US $20.16 |
||
|
1
|
1
3084737 Ring,piston,std,Std.; |
3084737 |
US $30.24 |
||
|
2
|
2
3084167 Clip,piston pin(10)10; |
3084167 |
US $91 |
||
|
3
|
3
3083838 Pin, piston * |
3083838 |
US $30.54 |
||
|
4
|
4
3085886 Piston, standardSTD;Std.; |
3085886 |
US $160 |
||
|
4
|
4
3085887 Piston,,010"/,25mm o/s0.25 O/S;0.25mm/.010 O/S; |
3085887 |
US $128.03 |
||
|
4
|
4
3085888 Piston,,020"/,50mm o/s *0.50 O/S;0.50mm/.020 O/S; |
3085888 |
US $124.08 |
||
|
5
|
5
3084172
Balancer
|
3084172 |
— | ||
| replacement | |||||
|
5
|
5
3087042
Balancer
|
3087042 |
— | ||
|
6
|
6
3086768 Plate |
3086768 |
from US $31.50 |
||
|
7
|
7
3086769 Bolt,flangeNo Longer Available; |
3086769 |
US $1.49 |
||
|
8
|
8
3080130
Key, woodruff
|
3080130 |
— | ||
| replacement | |||||
|
8
|
8
3081543 Key woodruff |
3081543 |
US $9.15 |
||
|
9
|
9
3084156 Gear, drive * |
3084156 |
US $136.90 |
||
|
10
|
10
3086764 Washer-guide |
3086764 |
US $2.98 |
||
|
11
|
11
3084160
O ring
|
3084160 |
— | ||
|
12
|
12
3086763
Collar
|
3086763 |
— | ||
|
13
|
13
3086762
Nut,slit
|
3086762 |
— | ||
|
14
|
14
3086767
Washer
|
3086767 |
— | ||
| replacement | |||||
|
14
|
14
3083904
Washer
|
3083904 |
— | ||
|
15
|
15
3083905
Nut,lock
|
3083905 |
— | ||
|
16
|
16
3084776 Crankshaft asm, *Incl. 16,17,18,20,21,23; |
3084776 |
US $1,181.72 |
||
|
16
|
16
3084149 Crankshaft #1,mag side |
3084149 |
US $299.15 |
||
|
17
|
17
3084155 Spacer, crank pin * |
3084155 |
US $20.28 |
||
|
18
|
18
3084154
Bearing, large end *
|
3084154 |
— | ||
|
19
|
19
3084168 Bearing, small end * |
3084168 |
US $35.46 |
||
|
20
|
20
3084153 Rod, connecting * |
3084153 |
US $172.34 |
||
|
21
|
21
3084777 Crankshaft #2,pto side |
3084777 |
US $192.01 |
||
|
22
|
22
3086765 Spacer-1,0,2mm0.2mm; |
3086765 |
US $6.20 |
||
|
22
|
22
3086766 Spacer-20.3mm; |
3086766 |
US $21.49 |
||
|
23
|
23
3084152 Pin, crank #1 * |
3084152 |
US $96.51 |
||
