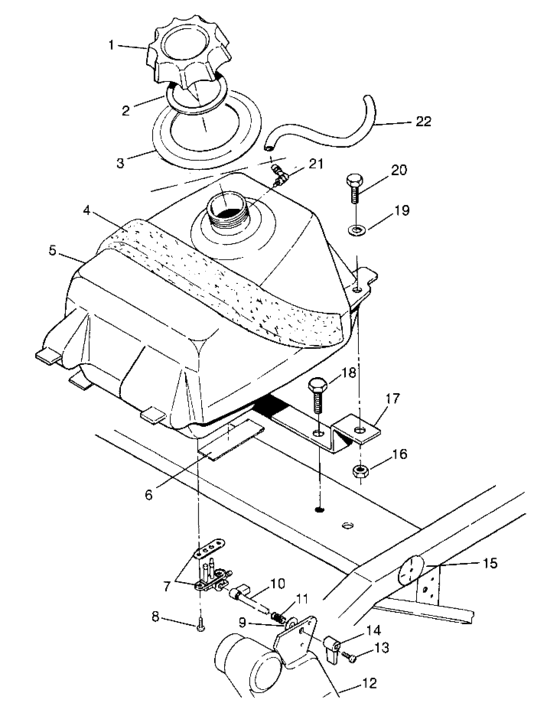

Fuel tank (Scrambler W967840) Diagram Polaris SCRAMBLER
- Model code
- W967840
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430725 Cap, gas, (black)*BLACK; |
5430725 |
US $24.08 |
||
|
2
|
2
5810144 Gasket-gas cap(10) |
5810144 |
US $2.66 |
||
|
3
|
3
5410842
Grommet,fueltank
|
5410842 |
— | ||
|
4
|
4
5811052
Foam, seal
|
5811052 |
— | ||
|
5
|
5
5430968
Tank,fuel
|
5430968 |
— | ||
| replacement | |||||
|
5
|
5
1240049
Tank,fuel,w/ valve
|
1240049 |
— | ||
|
6
|
6
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
7
|
7
5810859 Gasket, fuel valve |
5810859 |
US $3.75 |
||
|
7
|
7
7051006 Valve asm, fuel |
7051006 |
US $49.25 |
||
|
8
|
8
7515136 Screw(10) *10; |
7515136 |
US $1.89 |
||
|
9
|
9
7555726 Washer10; |
7555726 |
US $6.56 |
||
|
10
|
10
5431391 Ext,,fuel lever |
5431391 |
US $9.19 |
||
|
11
|
11
7041209 Spring,lever,compress, |
7041209 |
US $9.26 |
||
|
13
|
13
7511840 Screw(10)10; |
7511840 |
US $0.79 |
||
|
14
|
14
5431021 Lever, fuel |
5431021 |
US $5.25 |
||
|
15
|
15
7074637
Decal,fuel lever
|
7074637 |
— | ||
|
16
|
16
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
17
|
17
5220916-067
Brkt,r,tank mt,blk,
|
5220916-067 |
— | ||
|
18
|
18
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
19
|
19
7555734 Washer,flat(10)10; |
7555734 |
US $0.79 |
||
|
20
|
20
7512310 Screw(10)10; |
7512310 |
US $0.79 |
||
|
21
|
21
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
22
|
22
8360009-94
Desc not_available
|
8360009-94 |
— | ||
