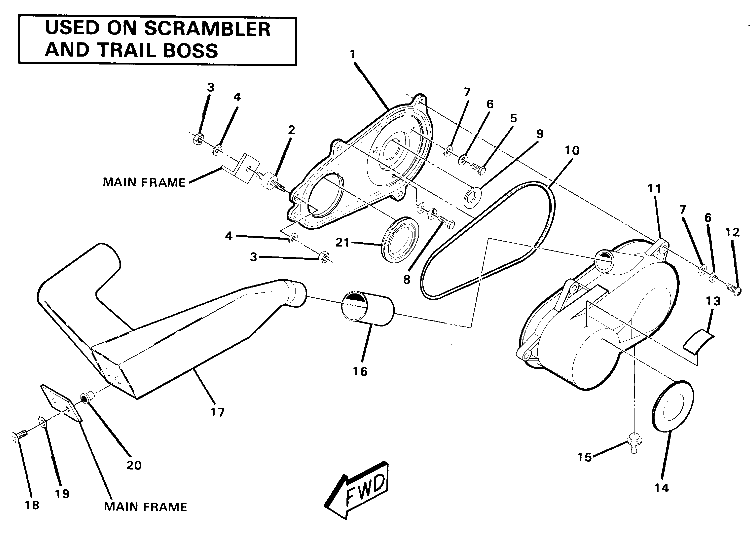

Clutch cover assembly. Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430772
Cover, clutch, rear
|
5430772 |
— | ||
| replacement | |||||
|
1
|
1
2200803 Kit,inner clutch cvr, |
2200803 |
US $117.20 |
||
|
2
|
2
3110027
Mount,rubber,clutchcover
No Longer Available; |
3110027 |
— | ||
|
3
|
3
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
4
|
4
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
5
|
5
7512270
Bolt
|
7512270 |
— | ||
|
6
|
6
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
7
|
7
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
8
|
8
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
9
|
9
5410410
Seal, cover,case
|
5410410 |
— | ||
|
10
|
10
5521148
Gasket, cover
|
5521148 |
— | ||
| replacement | |||||
|
10
|
10
5521301 Seal,outer,clutch cover |
5521301 |
US $23.64 |
||
|
11
|
11
5430771
Cover, clutch,front*rtp
|
5430771 |
— | ||
|
12
|
12
7512239
Bolt
10; |
7512239 |
— | ||
| replacement | |||||
|
12
|
12
7517377 Screw10; |
7517377 |
US $2.98 |
||
|
13
|
13
7072242
Decal
|
7072242 |
— | ||
| replacement | |||||
|
13
|
13
7072602
Decal,brake shield
|
7072602 |
— | ||
|
14
|
14
5430777
Logo,p.v.t. gold
|
5430777 |
— | ||
| replacement | |||||
|
14
|
14
5430829
Logo
|
5430829 |
— | ||
|
15
|
15
5410432
Grommet,drain plug
|
5410432 |
— | ||
|
16
|
16
5410423
Boot, intake
|
5410423 |
— | ||
|
17
|
17
5430749
Duct,outlet,air/eng.
|
5430749 |
— | ||
| replacement | |||||
|
17
|
17
5430914
Duct, air
|
5430914 |
— | ||
|
18
|
18
7512279 Screw(10) *10; |
7512279 |
US $0.79 |
||
|
19
|
19
7552604 Washer(10)10; |
7552604 |
US $2.45 |
||
|
20
|
20
7541923 Nut-well(10) *10; |
7541923 |
US $7.68 |
||
|
21
|
21
5410411
Seal,eng,/clutch
|
5410411 |
— | ||
