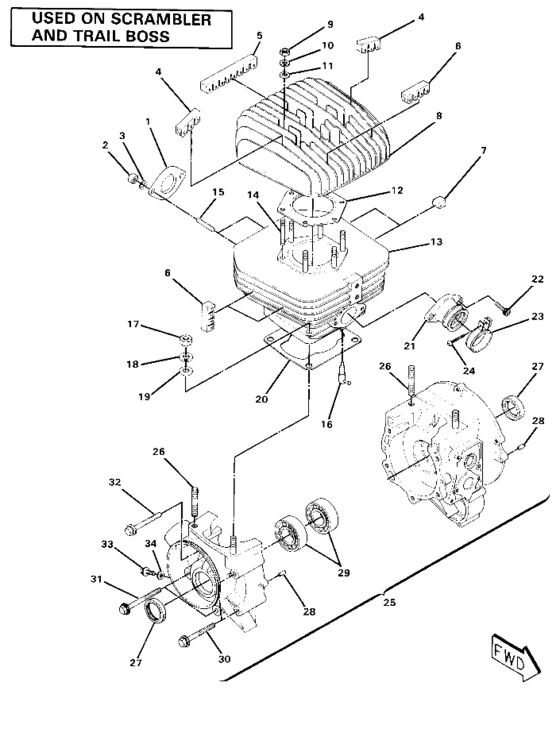

Crankcase and cylinder assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3082510
Gasket,exhaust
|
3082510 |
— | ||
| replacements | |||||
|
1
|
1
3086757 Gasket, exhaust |
3086757 |
US $12.20 |
||
|
1
|
1
3086757NONASBESTOS
New Genuine Part
|
3086757NONASBESTOS |
— | ||
|
1
|
1
3086757-NA
New Genuine Part
|
3086757-NA |
— | ||
|
2
|
2
3080285
Nut
10; |
3080285 |
— | ||
|
3
|
3
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
4
|
4
3083624
Fin damper #4
No Longer Available; |
3083624 |
— | ||
|
5
|
5
3083623
Fin damper #3
No Longer Available; |
3083623 |
— | ||
|
6
|
6
3083621
Fin damper #1
|
3083621 |
— | ||
| replacement | |||||
|
6
|
6
3083929 Fin damper #1 |
3083929 |
US $19.20 |
||
|
7
|
7
3083622
Fin damper #2
|
3083622 |
— | ||
| replacement | |||||
|
7
|
7
3083930 Fin damper #2 |
3083930 |
US $22.45 |
||
|
8
|
8
3083620
Head, cylinder
|
3083620 |
— | ||
| replacement | |||||
|
8
|
8
3086841 Head,cylinder |
3086841 |
US $365.14 |
||
|
9
|
9
3080119 Nut(10)10; |
3080119 |
US $0.79 |
||
|
10
|
10
3083572
Washer, spring
10; |
3083572 |
— | ||
|
11
|
11
3082673 Washer(10)10; |
3082673 |
US $0.79 |
||
|
12
|
12
3083676
Gasket, head
|
3083676 |
— | ||
| replacement | |||||
|
12
|
12
3083768
Gasket, head
|
3083768 |
— | ||
|
13
|
13
3083617
Cylinder
|
3083617 |
— | ||
| replacement | |||||
|
13
|
13
3085541
Cylinder *
|
3085541 |
— | ||
|
14
|
14
3083618 Stud |
3083618 |
US $3.75 |
||
|
15
|
15
3080016 Stud (10)10; |
3080016 |
US $7.51 |
||
|
16
|
16
3083337
Valve, check
|
3083337 |
— | ||
| replacement | |||||
|
16
|
16
3086785 Asm,,valve,check |
3086785 |
US $51.21 |
||
|
17
|
17
3080047
Nut
|
3080047 |
— | ||
| replacement | |||||
|
17
|
17
3082911 Nut-flange(10) |
3082911 |
US $0.79 |
||
|
18
|
18
3080281 Washer, spring(10)10; |
3080281 |
US $0.79 |
||
|
19
|
19
3080356 Washer(10)10; |
3080356 |
US $0.79 |
||
|
20
|
20
3083619
Gasket, cylinder
|
3083619 |
— | ||
| replacement | |||||
|
20
|
20
3083733
Gasket,cylinder
|
3083733 |
— | ||
|
21
|
21
3083412
Adapter, carb.
|
3083412 |
— | ||
| replacement | |||||
|
21
|
21
3085013 Adapter, carb, * |
3085013 |
US $107.36 |
||
|
22
|
22
3081330 Bolt, socket head |
3081330 |
US $3.26 |
||
|
23
|
23
3082257 Asm,,band,adapter |
3082257 |
US $19.30 |
||
|
24
|
24
3081497 Screw,pan head (10)10; |
3081497 |
US $0.79 |
||
|
25
|
25
3083614
Crankcase
|
3083614 |
— | ||
|
26
|
26
3080746
Stud
|
3080746 |
— | ||
| replacement | |||||
|
26
|
26
3085713 Stud |
3085713 |
US $7.09 |
||
|
27
|
27
3082162 Seal,oil |
3082162 |
US $26.60 |
||
|
28
|
28
3080103
Pin, dowel
|
3080103 |
— | ||
| replacement | |||||
|
28
|
28
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
29
|
29
3080004
Bearing,ball
|
3080004 |
— | ||
| replacement | |||||
|
29
|
29
3083805 Bearing,ball * |
3083805 |
US $48.62 |
||
|
30
|
30
3080739 Asm,, bolt and washer |
3080739 |
US $5.22 |
||
|
31
|
31
3083615
Bolt&washer assy,
|
3083615 |
— | ||
|
32
|
32
3082096 Bolt and washer assy, |
3082096 |
US $1.77 |
||
|
33
|
33
3083616
Bolt, flange
|
3083616 |
— | ||
| replacement | |||||
|
33
|
33
3083767 Plug,drain |
3083767 |
US $5.92 |
||
|
34
|
34
3083569
Gasket
FIBER; |
3083569 |
— | ||
| replacement | |||||
|
34
|
34
7555998 Washer,flat(10) *FIBER; |
7555998 |
US $0.79 |
||
