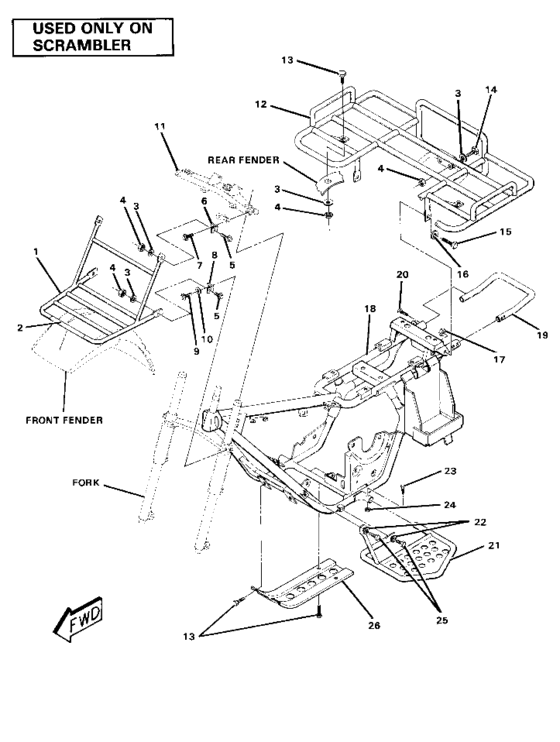

Frame assembly with racks-scrambler Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670087
Rack, front, weld
|
2670087 |
— | ||
| replacement | |||||
|
1
|
1
2670087-067
New Genuine Part
|
2670087-067 |
— | ||
|
2
|
2
7072238
Decal
No Longer Available; |
7072238 |
— | ||
|
3
|
3
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
4
|
4
7542124 Nut10; |
7542124 |
US $1.89 |
||
|
5
|
5
7512216
Screw
No Longer Available; 10; |
7512216 |
— | ||
|
6
|
6
5220473
Bracket, upper
|
5220473 |
— | ||
|
7
|
7
1844009
Bolt, flange
No Longer Available; |
1844009 |
— | ||
|
8
|
8
5220465
Bracket, lower
|
5220465 |
— | ||
|
9
|
9
1844025
Bolt
No Longer Available; |
1844025 |
— | ||
|
10
|
10
1844026
Washer,spring
No Longer Available; |
1844026 |
— | ||
|
11
|
11
1844008
Crown, handle
No Longer Available; |
1844008 |
— | ||
|
12
|
12
2670089
Rack, rear, weld
|
2670089 |
— | ||
|
13
|
13
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
14
|
14
7512270
Bolt
|
7512270 |
— | ||
|
15
|
15
7512310 Screw(10)10; |
7512310 |
US $0.79 |
||
|
16
|
16
7558403 Washer,wrought10; |
7558403 |
US $2.45 |
||
|
17
|
17
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
18
|
18
1011561
Frame weld.
No Longer Available; |
1011561 |
— | ||
|
19
|
19
5224262
Bumper, rear
|
5224262 |
— | ||
|
20
|
20
7512223
Bolt-carriage
No Longer Available; |
7512223 |
— | ||
|
21
|
21
1040109
Pad, foot, lh
|
1040109 |
— | ||
|
21
|
21
1040110
Pad, foot, rh
|
1040110 |
— | ||
|
22
|
22
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
23
|
23
7512133
Bolt
No Longer Available; |
7512133 |
— | ||
|
24
|
24
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
25
|
25
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
26
|
26
5220615
Guard, rock
|
5220615 |
— | ||
