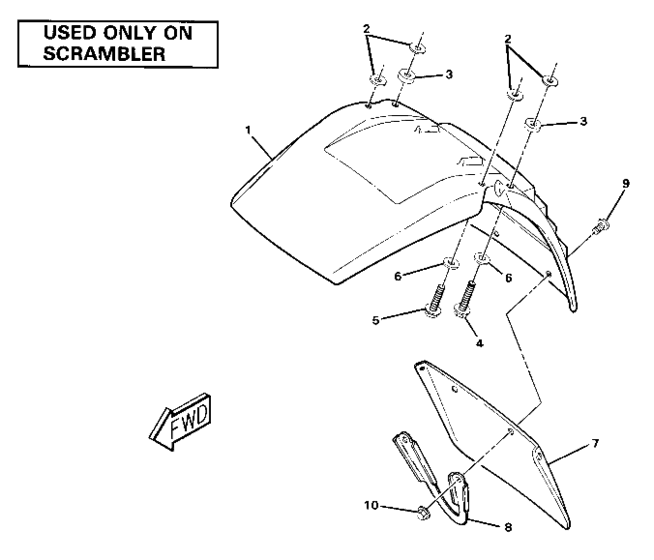

Front fender-scrambler. Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2640001
Fender, front
|
2640001 |
— | ||
|
2
|
2
2640003
Washer,front fender
No Longer Available; |
2640003 |
— | ||
|
3
|
3
5020445
Spacer,front fender
No Longer Available; |
5020445 |
— | ||
|
4
|
4
7516713
Bolt
|
7516713 |
— | ||
|
5
|
5
2640005
Bolt w/washer,fr.fender
No Longer Available; |
2640005 |
— | ||
|
6
|
6
2640004
Washer,plate,f.fender
No Longer Available; |
2640004 |
— | ||
|
7
|
7
5850067
Flap,mud,front
|
5850067 |
— | ||
|
8
|
8
2640006
Plate,fr.fender
No Longer Available; |
2640006 |
— | ||
|
9
|
9
2640007
Screw,bind.,f.fender
|
2640007 |
— | ||
|
10
|
10
2640008
Nut,flange,f.bumper
No Longer Available; |
2640008 |
— |
