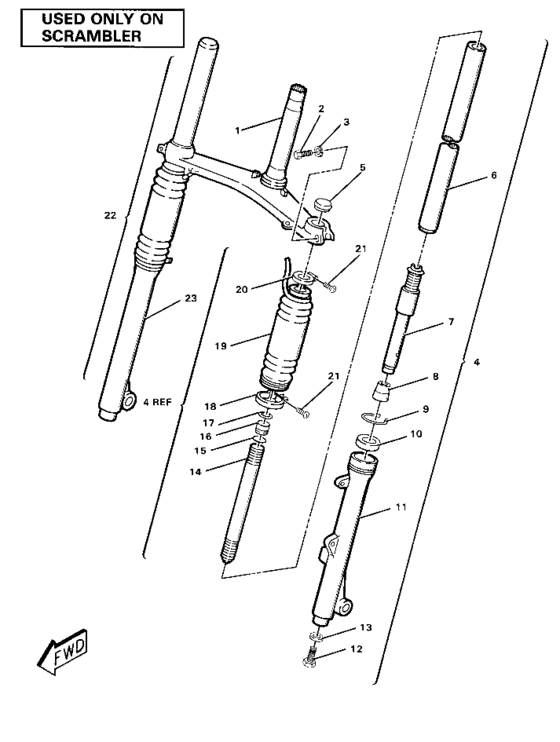

Front fork assembly-scrambler Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1844024
Bracket,under,comp.
No Longer Available; |
1844024 |
— | ||
|
2
|
2
1844025
Bolt
No Longer Available; |
1844025 |
— | ||
|
3
|
3
1844026
Washer,spring
No Longer Available; |
1844026 |
— | ||
|
4
|
4
1843001
Fork asm,front lh
No Longer Available; |
1843001 |
— | ||
|
5
|
5
1844037
Plug, inner tube
No Longer Available; |
1844037 |
— | ||
|
6
|
6
1844027
Tube, inner, 1
No Longer Available; |
1844027 |
— | ||
|
7
|
7
1844028
Cylinder
No Longer Available; |
1844028 |
— | ||
|
8
|
8
1844038
Spindle, taper
No Longer Available; |
1844038 |
— | ||
|
9
|
9
1844032
Clip, circle
No Longer Available; |
1844032 |
— | ||
|
10
|
10
1844031
Seal, oil
No Longer Available; |
1844031 |
— | ||
|
11
|
11
1844029
Tube,outer, lh
No Longer Available; |
1844029 |
— | ||
|
12
|
12
1844040
Bolt
No Longer Available; |
1844040 |
— | ||
|
13
|
13
1844039
Washer, plate
No Longer Available; |
1844039 |
— | ||
|
14
|
14
1844033
Spring,front fork
No Longer Available; |
1844033 |
— | ||
|
15
|
15
1844035
O ring
No Longer Available; |
1844035 |
— | ||
|
16
|
16
1844034
Bolt, cap
No Longer Available; |
1844034 |
— | ||
|
17
|
17
1844036
Clip, circle
No Longer Available; |
1844036 |
— | ||
|
18
|
18
1844042
Band
No Longer Available; |
1844042 |
— | ||
|
19
|
19
1844041
Boot
No Longer Available; |
1844041 |
— | ||
|
20
|
20
1844043
Band 2
No Longer Available; |
1844043 |
— | ||
|
21
|
21
1844044
Screw, pan head
No Longer Available; |
1844044 |
— | ||
|
22
|
22
1843002
Fork asm, front rh
No Longer Available; |
1843002 |
— | ||
|
23
|
23
1844030
Tube,outer, rh
No Longer Available; |
1844030 |
— |
