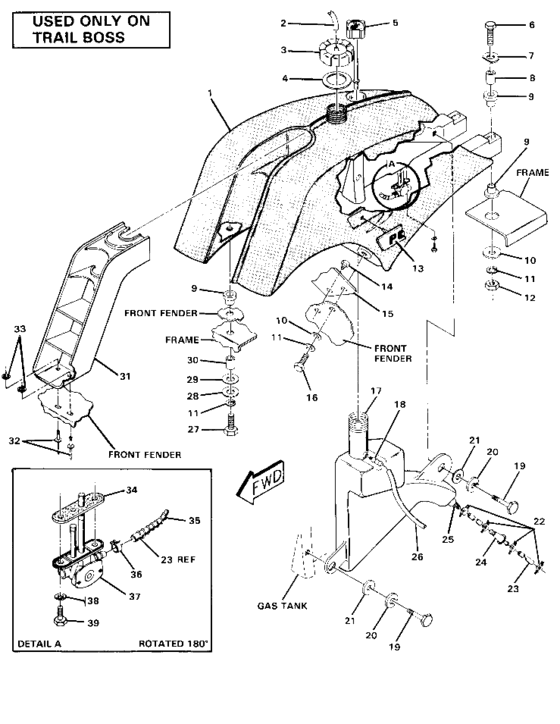

Fuel tank assembly-trail boss Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430759
Tank,fuel, 4 whl.
|
5430759 |
— | ||
| replacement | |||||
|
1
|
1
5430898
Tank,gas,black
|
5430898 |
— | ||
|
2
|
2
5521154
Line, vent
|
5521154 |
— | ||
| replacement | |||||
|
2
|
2
5521171
Line, vent
|
5521171 |
— | ||
|
3
|
3
5430799
Cap, gas tank
No Longer Available; |
5430799 |
— | ||
|
4
|
4
5810288 Gasket, gas cap |
5810288 |
US $11.25 |
||
|
5
|
5
2511162
Cap/dipstick, oil
No Longer Available; |
2511162 |
— | ||
|
6
|
6
7515322
Bolt
No Longer Available; |
7515322 |
— | ||
|
7
|
7
5211040
Washer
No Longer Available; |
5211040 |
— | ||
|
8
|
8
5330160
Spacer,fuel tank
|
5330160 |
— | ||
|
9
|
9
5410428 Grommet,fuel tank,rear |
5410428 |
US $9.38 |
||
|
10
|
10
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
11
|
11
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
12
|
12
7542302 Nut lock10; |
7542302 |
US $3.26 |
||
|
13
|
13
5430817
Logo, polaris
|
5430817 |
— | ||
| replacement | |||||
|
13
|
13
5430864
Logo,`polaris`
|
5430864 |
— | ||
|
14
|
14
7670041
Clip-plastic
10; |
7670041 |
— | ||
| replacement | |||||
|
14
|
14
7621509 Rivet,plasti-lock(50) *10; |
7621509 |
US $197 |
||
|
15
|
15
5850069
Flap splash guard
|
5850069 |
— | ||
| replacement | |||||
|
15
|
15
5850070
Flap,splashguard
|
5850070 |
— | ||
|
16
|
16
7512307 Screw10; |
7512307 |
US $2.45 |
||
|
17
|
17
5430762
Tank,oil, 3&4 whl.
|
5430762 |
— | ||
|
18
|
18
5430579 Vent-tank |
5430579 |
US $46.90 |
||
|
19
|
19
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
20
|
20
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
21
|
21
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
22
|
22
7080134
Clamp-hose
10; |
7080134 |
— | ||
|
23
|
23
5521133
Fuel line3/16id-2ft.
|
5521133 |
— | ||
| replacement | |||||
|
23
|
23
8450037-600 Fuel line,3/16 id(600 cm,) |
8450037-600 |
US $79.35 |
||
|
24
|
24
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
25
|
25
7052023 Fitting - outlet(10)10; |
7052023 |
US $16.24 |
||
|
26
|
26
2200190
Kit-tank vent
|
2200190 |
— | ||
|
27
|
27
7512306
Screw
10; |
7512306 |
— | ||
|
28
|
28
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
29
|
29
5410430
Washer, rubber
|
5410430 |
— | ||
|
30
|
30
5330158
Spacer,mounting
No Longer Available; |
5330158 |
— | ||
|
31
|
31
5430765
Louver,air intake
|
5430765 |
— | ||
|
32
|
32
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
33
|
33
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
34
|
34
5810308
Gasket, fuel valve
|
5810308 |
— | ||
|
35
|
35
7041172
Spring,fuel line protector
No Longer Available; |
7041172 |
— | ||
|
36
|
36
7080134
Clamp-hose
10; |
7080134 |
— | ||
|
37
|
37
7052041
Valve,fuel tank
|
7052041 |
— | ||
|
38
|
38
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
39
|
39
7512261 Bolt10; |
7512261 |
US $2.45 |
||
