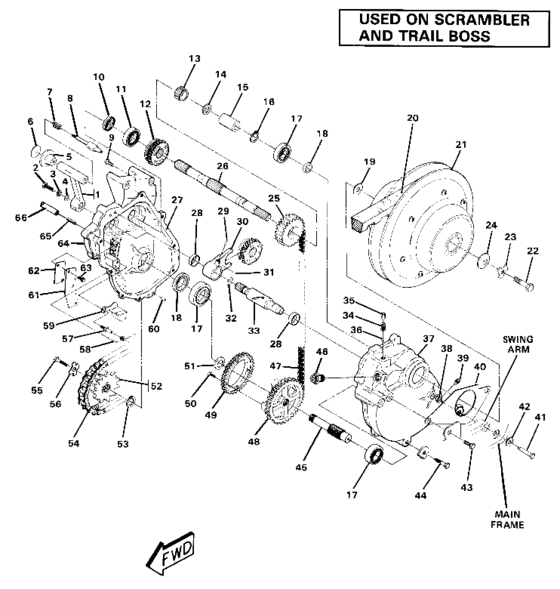

Gearcase assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1341024
Lever, shift
No Longer Available; |
1341024 |
— | ||
|
2
|
2
7512111
Bolt
10; |
7512111 |
— | ||
| replacement | |||||
|
2
|
2
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
3
|
3
7552604 Washer(10)10; |
7552604 |
US $2.45 |
||
|
4
|
4
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
5
|
5
7030006
Knob
|
7030006 |
— | ||
|
6
|
6
7072234
Decal
No Longer Available; |
7072234 |
— | ||
|
7
|
7
7041170 Spring,shift lever |
7041170 |
US $43.16 |
||
|
8
|
8
5020442
Shaft,shift lever
|
5020442 |
— | ||
| replacement | |||||
|
8
|
8
5020470
Shaft,shift lever
|
5020470 |
— | ||
|
9
|
9
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
10
|
10
3610014
Seal, oil
|
3610014 |
— | ||
|
11
|
11
3514001 Bearing, ball |
3514001 |
US $20.69 |
||
|
12
|
12
5130592
Pinion, reverse
|
5130592 |
— | ||
| replacement | |||||
|
12
|
12
5130621 Pinion, reverse |
5130621 |
US $189.07 |
||
|
13
|
13
3554502
Bearing, needle
|
3554502 |
— | ||
|
14
|
14
7555751
Washer
10; |
7555751 |
— | ||
|
15
|
15
5010210
Spacer, input shaft
|
5010210 |
— | ||
|
16
|
16
7710411
Ring, ret,
10; |
7710411 |
— | ||
|
17
|
17
3514304 Bearing,205,w/o seal #6205 |
3514304 |
US $19.69 |
||
|
18
|
18
3610015 Seal, oil |
3610015 |
US $6.11 |
||
|
19
|
19
5211041
Spacer,washer,driven clutch
|
5211041 |
— | ||
|
20
|
20
3211048
Belt-drive
5; |
3211048 |
— | ||
| replacement | |||||
|
20
|
20
3211077 Belt,drive (5)5; |
3211077 |
US $102.36 |
||
|
21
|
21
1322112
Clutch, driven
|
1322112 |
— | ||
| replacement | |||||
|
21
|
21
1322180 Asm,,clutch,driven,hvy ret |
1322180 |
US $1,076.23 |
||
|
22
|
22
7515318
Bolt
10; |
7515318 |
— | ||
|
23
|
23
7577901
Washer,shakeproof,5/16
10; |
7577901 |
— | ||
|
24
|
24
5220646 Washer, domed10; |
5220646 |
US $6.56 |
||
|
25
|
25
5130593 Gear,forward,small |
5130593 |
US $287.56 |
||
|
26
|
26
5020439
Shaft, input
|
5020439 |
— | ||
| replacement | |||||
|
26
|
26
5020467
Shaft, input
|
5020467 |
— | ||
|
27
|
27
2870587
Gasket elimin.50cctube
|
2870587 |
— | ||
| replacement | |||||
|
27
|
27
2871557
Sealant,5oz,3 bond 1215
|
2871557 |
— | ||
|
28
|
28
3574209
Bushing, sleeve
|
3574209 |
— | ||
|
29
|
29
7661819
Pin, dowel
10; |
7661819 |
— | ||
|
30
|
30
5130594
Fork, shift
|
5130594 |
— | ||
| replacement | |||||
|
30
|
30
5130662
Fork, shift *
|
5130662 |
— | ||
|
31
|
31
7661206
Pin, spring
10; |
7661206 |
— | ||
|
32
|
32
5410440 O ring10; |
5410440 |
US $6.11 |
||
|
33
|
33
5130595 Shaft, shift |
5130595 |
US $18.73 |
||
|
34
|
34
7041169
Spring, shifter
|
7041169 |
— | ||
|
35
|
35
7515473
Screw, set
10; |
7515473 |
— | ||
|
36
|
36
7080310 Ball, detent (10) |
7080310 |
US $2.92 |
||
|
37
|
37
5130588
Gearcase,lh
|
5130588 |
— | ||
|
38
|
38
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
39
|
39
7051512
Plug,pipe,magnetic
|
7051512 |
— | ||
|
40
|
40
5220636
Retainer,bulkhead,lh
|
5220636 |
— | ||
|
41
|
41
7512664
Bolt, special
|
7512664 |
— | ||
|
42
|
42
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
43
|
43
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
43
|
43
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
43
|
43
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
44
|
44
7515472 Bolt10; |
7515472 |
US $6.56 |
||
|
45
|
45
5020440
Shaft, output
|
5020440 |
— | ||
|
46
|
46
4110062 Sw,rev,/neut,indic, |
4110062 |
US $22.45 |
||
|
47
|
47
3224035
Chain, silent
|
3224035 |
— | ||
|
48
|
48
5130591
Gear, forward
No Longer Available; |
5130591 |
— | ||
|
49
|
49
5130590
Ring gear, reverse
|
5130590 |
— | ||
| replacement | |||||
|
49
|
49
5130644
Outputshaft w/gear asm.
|
5130644 |
— | ||
|
50
|
50
7512247 Bolt(10) *10; |
7512247 |
US $0.79 |
||
|
51
|
51
5010211
Spacer,output shaft
No Longer Available; |
5010211 |
— | ||
|
52
|
52
3221041 Spkt,13t,splined * |
3221041 |
US $49.23 |
||
|
53
|
53
7710410
Ring, ret.
|
7710410 |
— | ||
|
54
|
54
3224034
Chain,final drive-73 pitch
|
3224034 |
— | ||
|
55
|
55
7512391
Bolt
10; |
7512391 |
— | ||
|
56
|
56
7577902
Washer,shakeproof,5/16
|
7577902 |
— | ||
|
57
|
57
7080308
Bolt tensioner
|
7080308 |
— | ||
|
58
|
58
7041163
Spring, tensioner
|
7041163 |
— | ||
|
59
|
59
7080309
Dampener,tensioner
No Longer Available; |
7080309 |
— | ||
|
60
|
60
7661904
Pin, dowel
10; |
7661904 |
— | ||
|
61
|
61
5211036
Plate, vent
|
5211036 |
— | ||
|
62
|
62
5810305
Gasket, vent
|
5810305 |
— | ||
|
63
|
63
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
64
|
64
5130589
Gearcase,rh
|
5130589 |
— | ||
| replacement | |||||
|
64
|
64
5130611
Gearcase, rh *
|
5130611 |
— | ||
|
65
|
65
7661504
Pin-spiral
10; |
7661504 |
— | ||
|
66
|
66
2200190
Kit-tank vent
|
2200190 |
— | ||
