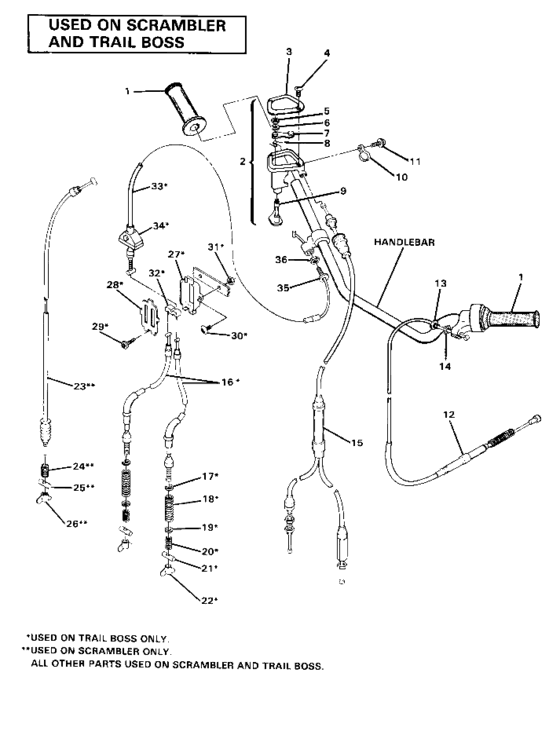

Hand control cable assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410416
Grip, handle bar
|
5410416 |
— | ||
| replacement | |||||
|
1
|
1
5431030
Grip, handlebar
|
5431030 |
— | ||
|
2
|
2
2010045
Lever,throttle asm.
No Longer Available; |
2010045 |
— | ||
|
3
|
3
5430804
Cover,throttle control
|
5430804 |
— | ||
|
4
|
4
2010054
Screw
|
2010054 |
— | ||
|
5
|
5
2010053
Nut
|
2010053 |
— | ||
|
6
|
6
2010052
Washer
No Longer Available; |
2010052 |
— | ||
|
7
|
7
2010051
Arm
|
2010051 |
— | ||
|
8
|
8
2010050
Spring
No Longer Available; |
2010050 |
— | ||
|
9
|
9
2010049 Lever |
2010049 |
US $16.89 |
||
|
10
|
10
2050005
Holder,lever,low.1
|
2050005 |
— | ||
|
11
|
11
2010047
Screw&washer
|
2010047 |
— | ||
|
12
|
12
7080305
Cable, rear brake
|
7080305 |
— | ||
|
13
|
13
2050023
Bolt
|
2050023 |
— | ||
|
14
|
14
2050024
Nut
|
2050024 |
— | ||
|
15
|
15
7080298
Cable, throttle
|
7080298 |
— | ||
|
16
|
16
2050027 Cable,brake,lower |
2050027 |
US $76.81 |
||
|
17
|
17
2050035
Clip, circle
|
2050035 |
— | ||
|
18
|
18
2050033
Spring, compression
|
2050033 |
— | ||
|
19
|
19
2050034
Washer
|
2050034 |
— | ||
|
20
|
20
2050015
Spring,compression
|
2050015 |
— | ||
|
21
|
21
2050016
Pin
|
2050016 |
— | ||
|
22
|
22
2050014
Nut, wing
|
2050014 |
— | ||
|
23
|
23
2050013
Cable,brake,fr.,3 whl.
No Longer Available; |
2050013 |
— | ||
|
24
|
24
2050015
Spring,compression
|
2050015 |
— | ||
|
25
|
25
2050016
Pin
|
2050016 |
— | ||
|
26
|
26
2050014
Nut, wing
|
2050014 |
— | ||
|
27
|
27
2050029
Housing, brake line
No Longer Available; |
2050029 |
— | ||
|
28
|
28
2050031
Plate
|
2050031 |
— | ||
|
29
|
29
2050032
Screw w/ washer
|
2050032 |
— | ||
|
30
|
30
7511989
Screw
10; |
7511989 |
— | ||
|
31
|
31
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
32
|
32
2050030
Cable, joint
|
2050030 |
— | ||
|
33
|
33
2050028
Cable,brake,upper
|
2050028 |
— | ||
|
34
|
34
2050036
Boot
No Longer Available; |
2050036 |
— | ||
|
35
|
35
2050023
Bolt
|
2050023 |
— | ||
|
36
|
36
2050024
Nut
|
2050024 |
— | ||
