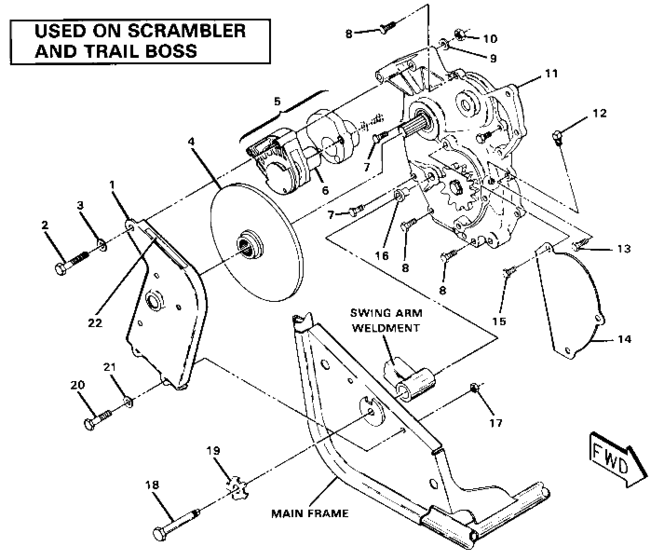

Right hand gearcase & brake mounting. Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5220598
Cover, brake disc
No Longer Available; |
5220598 |
— | ||
|
2
|
2
7515320
Bolt
|
7515320 |
— | ||
|
3
|
3
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
4
|
4
1910021
Disc, brake
|
1910021 |
— | ||
| replacement | |||||
|
4
|
4
1910087
Disc, brake
|
1910087 |
— | ||
|
5
|
5
1910026
Caliper, brake
No Longer Available; |
1910026 |
— | ||
|
6
|
6
2200231
Kit,puck replacement
|
2200231 |
— | ||
| replacement | |||||
|
6
|
6
2200256 Kit,pucks,(replacement) |
2200256 |
US $149.66 |
||
|
7
|
7
7512225 Screw10; |
7512225 |
US $3.26 |
||
|
8
|
8
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
9
|
9
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
10
|
10
7542302 Nut lock10; |
7542302 |
US $3.26 |
||
|
11
|
11
1341041
Gearcase asm.
No Longer Available; |
1341041 |
— | ||
|
12
|
12
7051511
Plug, pipe
10; |
7051511 |
— | ||
|
13
|
13
7512243
Screw
10; |
7512243 |
— | ||
|
14
|
14
5220644
Guard,sprocket
|
5220644 |
— | ||
|
15
|
15
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
16
|
16
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
17
|
17
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
18
|
18
7512665
Bolt, special
|
7512665 |
— | ||
|
19
|
19
5220611
Plate,bolt lock
|
5220611 |
— | ||
|
20
|
20
7512307 Screw10; |
7512307 |
US $2.45 |
||
|
21
|
21
7558403 Washer,wrought10; |
7558403 |
US $2.45 |
||
|
22
|
22
7072242
Decal
|
7072242 |
— | ||
| replacement | |||||
|
22
|
22
7072602
Decal,brake shield
|
7072602 |
— | ||
