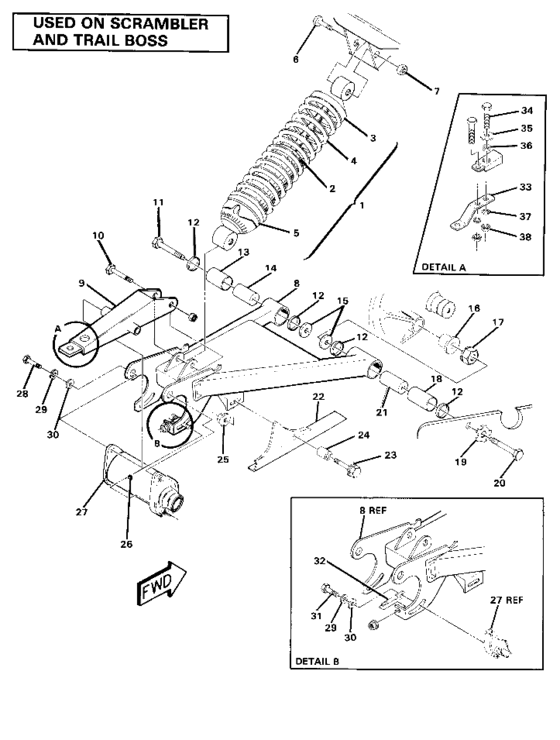

Swing arm weldment and rear shock assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1580004
Shock asm,rear
Item NotAvailable; |
1580004 |
— | ||
|
2
|
2
7041156
Shock,rear susp.
|
7041156 |
— | ||
|
3
|
3
5220631
Retainer, upper
|
5220631 |
— | ||
|
4
|
4
7041159
Spring,coil
SHOCK; |
7041159 |
— | ||
|
5
|
5
5610092
Cam,adjusting spring
|
5610092 |
— | ||
| replacement | |||||
|
5
|
5
5630334 Cam,adjusting spring |
5630334 |
US $27.09 |
||
|
6
|
6
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
7
|
7
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
8
|
8
1580003
Arm, swing, weld
|
1580003 |
— | ||
| replacement | |||||
|
8
|
8
1580003-067
New Genuine Part
|
1580003-067 |
— | ||
|
9
|
9
1040108
Hitch weld.
|
1040108 |
— | ||
| replacement | |||||
|
9
|
9
1040108-067
New Genuine Part
|
1040108-067 |
— | ||
|
10
|
10
7515417 Screw10; |
7515417 |
US $3.94 |
||
|
11
|
11
7512664
Bolt, special
|
7512664 |
— | ||
|
12
|
12
7555752 Bushing, mach.10; |
7555752 |
US $1.89 |
||
|
13
|
13
3576505
Bearing, lh pivot
|
3576505 |
— | ||
|
14
|
14
5010207
Bushing,swing arm,lh
|
5010207 |
— | ||
|
15
|
15
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
16
|
16
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
17
|
17
7542703 Nut flexoc,10; |
7542703 |
US $13.09 |
||
|
18
|
18
3576506
Bearing, rh pivot
|
3576506 |
— | ||
|
19
|
19
5220611
Plate,bolt lock
|
5220611 |
— | ||
|
20
|
20
7512665
Bolt, special
|
7512665 |
— | ||
|
21
|
21
5010208
Bushing,swing arm,rh
|
5010208 |
— | ||
|
22
|
22
5430776 Guard, chain* |
5430776 |
US $35.67 |
||
|
23
|
23
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
24
|
24
5332828 Bushing |
5332828 |
US $7.18 |
||
|
25
|
25
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
26
|
26
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
27
|
27
1011556
Housing,axle, weld
|
1011556 |
— | ||
| replacement | |||||
|
27
|
27
1011657-067
New Genuine Part
|
1011657-067 |
— | ||
|
28
|
28
7512661
Bolt
10; |
7512661 |
— | ||
| replacement | |||||
|
28
|
28
7512670
Bolt
10; |
7512670 |
— | ||
|
29
|
29
7553201 Washer,split lock10; |
7553201 |
US $2.45 |
||
|
30
|
30
7555721 Washer(10)10; |
7555721 |
US $5.25 |
||
|
31
|
31
7512662
Bolt
|
7512662 |
— | ||
| replacement | |||||
|
31
|
31
7512669
Bolt
|
7512669 |
— | ||
|
32
|
32
1011583
Bolt, adjustment
|
1011583 |
— | ||
| replacement | |||||
|
32
|
32
7080293
Bolt, adjuster
|
7080293 |
— | ||
|
32
|
32
2870657
Desc not available
No Longer Available; Optional; |
2870657 |
— | ||
|
33
|
33
5220650
Plate,hitch kit
No Longer Available; |
5220650 |
— | ||
|
34
|
34
7512662
Bolt
|
7512662 |
— | ||
| replacement | |||||
|
34
|
34
7512669
Bolt
|
7512669 |
— | ||
|
35
|
35
7555721 Washer(10)10; |
7555721 |
US $5.25 |
||
|
36
|
36
5332840
Spacer,hitch kit
|
5332840 |
— | ||
|
37
|
37
7553201 Washer,split lock10; |
7553201 |
US $2.45 |
||
|
38
|
38
7542711 Nut-jam(10)10; |
7542711 |
US $0.79 |
||
