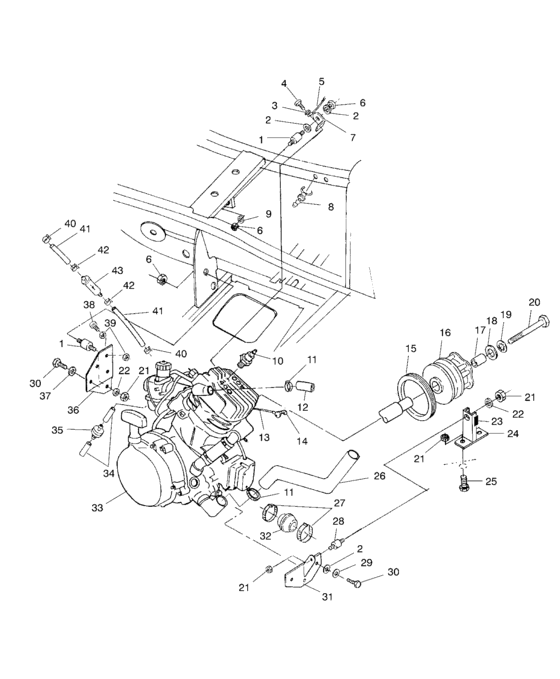

Engine mounting (A99BG38CA) Diagram Polaris SCRAMBLER 400
- Model code
- A99BG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3110038
Mount, motor
|
3110038 |
— | ||
|
2
|
2
7555823 Washer10; |
7555823 |
US $6.56 |
||
|
3
|
3
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
4
|
4
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
5
|
5
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
6
|
6
7542411 Nut,flexloc(10)10; |
7542411 |
US $5.25 |
||
|
7
|
7
5242692-067
Brkt,eng,mt,top,blk,400
|
5242692-067 |
— | ||
|
8
|
8
7052192
Fitting,vent,1/8"
|
7052192 |
— | ||
|
9
|
9
7555801 Washer10; |
7555801 |
US $2.45 |
||
|
10
|
10
3070156 Plug,spark,ngk br8es(10)10; |
3070156 |
US $4.15 |
||
|
11
|
11
7080614 Clamp,Hose10; |
7080614 |
US $6.69 |
||
|
12
|
12
5410570 Hose,eng,upper |
5410570 |
US $33.50 |
||
|
13
|
13
4010129 Cable,sol/start,dblboot |
4010129 |
US $40.37 |
||
|
14
|
14
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
17
|
17
5430261 Bushing |
5430261 |
US $9.85 |
||
|
18
|
18
5210748 Washer(10)10; |
5210748 |
US $65.60 |
||
|
19
|
19
7575202 Washer lock10; |
7575202 |
US $7.88 |
||
|
20
|
20
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
21
|
21
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
22
|
22
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
23
|
23
8360012-04
Edge trim-black,04 cm
|
8360012-04 |
— | ||
|
24
|
24
1040687-067 Mount,fr,engine,blk, |
1040687-067 |
US $19.30 |
||
|
25
|
25
7512457 Bolt10; |
7512457 |
US $3.26 |
||
|
26
|
26
5411556
Hose,formed,3/4idx21.75
|
5411556 |
— | ||
| replacement | |||||
|
26
|
26
5411637
Hose,formed,3/4x21,75,w/ chafe
|
5411637 |
— | ||
|
27
|
27
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
28
|
28
3110042
Mount, rubber
|
3110042 |
— | ||
|
29
|
29
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
30
|
30
7512490 Screw10; |
7512490 |
US $3.75 |
||
|
31
|
31
1040231-067
Mount,engine
|
1040231-067 |
— | ||
|
32
|
32
5411681 Boot,clutch inlet,2,4x2,1x5,2 |
5411681 |
US $13.79 |
||
|
33
|
33
3085821
Engine, short block
No Longer Available; See Footnote; |
3085821 |
— | ||
|
34
|
34
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
35
|
35
7051011 Valve,check |
7051011 |
US $9.15 |
||
|
36
|
36
5242463-067 Brkt,eng,mt,rear,blk |
5242463-067 |
US $89.79 |
||
|
37
|
37
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
37
|
37
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
38
|
38
3110048 Mt,torque stop,rubber |
3110048 |
US $9.15 |
||
|
39
|
39
7542432 Nut, jam10; |
7542432 |
US $2.45 |
||
|
40
|
40
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
41
|
41
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
42
|
42
7080534 Clamp,Hose10; |
7080534 |
US $2.45 |
||
|
43
|
43
2530008 Filter fuel,(10)10; |
2530008 |
US $5.04 |
||
