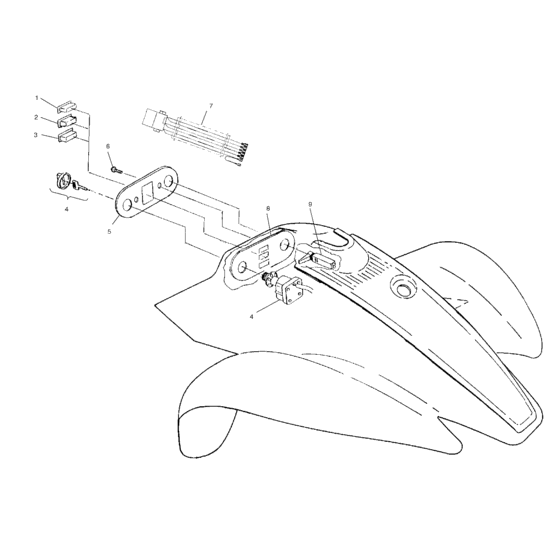

Control panel (A99BG38CB) Diagram Polaris SCRAMBLER 400
- Model code
- A99BG38CB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4010140
Indicator, low oil
SYMBOL;Symbol; |
4010140 |
— | ||
|
2
|
2
4040054 Indic"neut,/rev," |
4040054 |
US $25.43 |
||
|
3
|
3
4040053 Indic"hot temperature" |
4040053 |
US $34.46 |
||
|
4
|
4
4110141 Keyblank,atv ign,31 series |
4110141 |
US $13.20 |
||
|
4
|
4
4110148 Keyblank,atv ign,32 seriesSee Footnote; |
4110148 |
US $13.20 |
||
|
4
|
4
4110209 Switch,ign,w/ conIncl. Key; |
4110209 |
US $93.56 |
||
|
4
|
4
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
5
|
5
5431976
Panel,control,outer
|
5431976 |
— | ||
|
6
|
6
7512026 Screw10; |
7512026 |
US $19.60 |
||
|
7
|
7
2460664 Harness,con,panel,(scr,)SCR.; |
2460664 |
US $21.49 |
||
|
8
|
8
5431975 Panel,control,inner |
5431975 |
US $21.49 |
||
|
9
|
9
7080371 Cable, choke |
7080371 |
US $86.68 |
