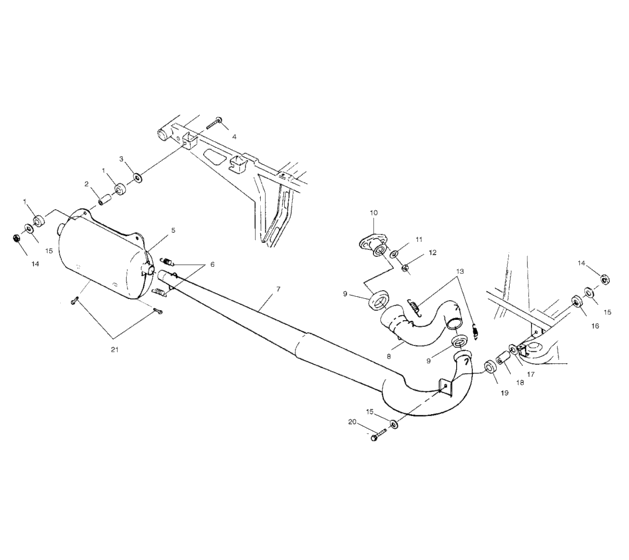

Exhaust system (A02BG38CA) Diagram Polaris SCRAMBLER 400 4X4
- Model code
- A02BG38CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410957 Dampener |
5410957 |
US $4.94 |
||
|
2
|
2
5010339 Spacer |
5010339 |
US $6.20 |
||
|
3
|
3
7555852 Washer, flat |
7555852 |
US $3.94 |
||
|
4
|
4
7515316 Bolt |
7515316 |
US $2.98 |
||
|
5
|
5
1260884-379
Silencer,scr 400,cer alum
|
1260884-379 |
— | ||
|
6
|
6
7042031
Spring, exhaust
|
7042031 |
— | ||
|
7
|
7
1260881-379 Muffler,scr 400,cer alum |
1260881-379 |
US $324.98 |
||
|
8
|
8
1260680-379
Headpipe
|
1260680-379 |
— | ||
|
9
|
9
5211592 Gasket,exhaust |
5211592 |
US $32.52 |
||
|
10
|
10
1260899-379
Manifold,scr 400,cer alum
|
1260899-379 |
— | ||
|
13
|
13
7042029 Spring(10) |
7042029 |
US $2.17 |
||
|
14
|
14
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
15
|
15
7555716 Washer |
7555716 |
US $2.45 |
||
|
16
|
16
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
17
|
17
7556401 Bushing(10) |
7556401 |
US $3.75 |
||
|
18
|
18
5010350
Bushing
|
5010350 |
— | ||
|
19
|
19
5410241
Dampener, vibration
|
5410241 |
— | ||
|
20
|
20
7515306
Bolt
|
7515306 |
— | ||
| replacement | |||||
|
20
|
20
7515352 Screw |
7515352 |
US $2.45 |
||
|
21
|
21
7512666 Bolt |
7512666 |
US $3.75 |
||
