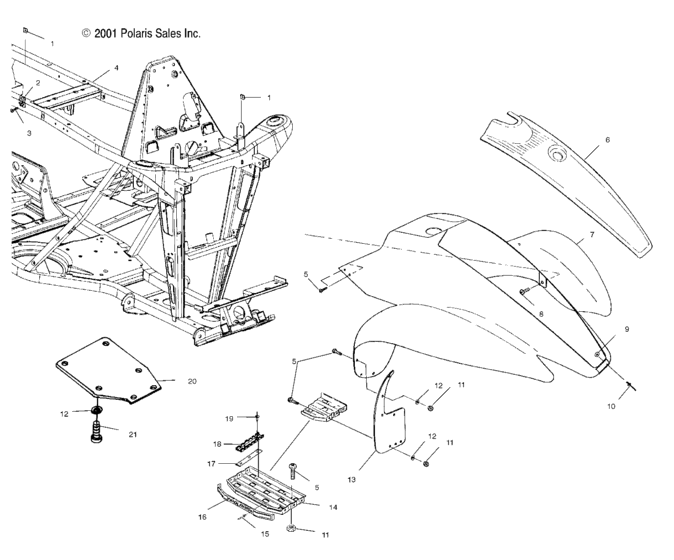

Front cab (A02BG38CA) Diagram Polaris SCRAMBLER 400 4X4
- Model code
- A02BG38CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
2
|
2
5244482-067
Bracket, cab mount, black, lh
|
5244482-067 |
— | ||
|
2
|
2
5244483-067
Bracket, cab mount, black, rh
|
5244483-067 |
— | ||
|
3
|
3
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
4
|
4
1013530-067
Frame,main,scr 400,blk
|
1013530-067 |
— | ||
|
5
|
5
7512282 Bolt, black(10) |
7512282 |
US $1.89 |
||
|
6
|
6
5431875-341
Cover-front,sonic blue
|
5431875-341 |
— | ||
|
7
|
7
2632424-341
Asm-cab,fr,geniii,svc son blue
w/Warning Decals; |
2632424-341 |
— | ||
|
8
|
8
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
9
|
9
7558201 Washer, flat |
7558201 |
US $2.92 |
||
|
10
|
10
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
11
|
11
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
12
|
12
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
13
|
13
5811831 Mudflap-front,hybrid,lh |
5811831 |
US $27.39 |
||
|
13
|
13
5850150 Mudflap,rh,fr,hybrid |
5850150 |
US $27.39 |
||
|
14
|
14
1013083-216
Footpad
|
1013083-216 |
— | ||
|
15
|
15
7661825 Rivet,(50) |
7661825 |
US $0.79 |
||
|
16
|
16
5434490 Trim-footrest,p216 scream ylw |
5434490 |
US $6.11 |
||
|
17
|
17
5246116-216 Riser-heel cleat,scr ylw |
5246116-216 |
US $16.24 |
||
|
18
|
18
5242525-216
Brkt-heel cleat,scr ylw
|
5242525-216 |
— | ||
|
19
|
19
7661146 Rivet-3/16 (,751-,875)lf-alum ( |
7661146 |
US $1.77 |
||
|
20
|
20
5432763 Guard,rock |
5432763 |
US $128.21 |
||
|
21
|
21
7515179 Screw |
7515179 |
US $2.98 |
